Item: | LED Street Light 150w | LED Source: | Lumileds 5050 |
---|---|---|---|
Watt: | 150w | Luminous: | 24450lm |
Driver: | Meanwell Driver | Beam Angle: | 150*65 Degree |
CCT: | WW / NW / PW | Lifetime: | >50000 Hours |
Control: | Daylight Control, Motion Sensor | IP Rated: | IP66 |
Highlight: | led roadway lighting,led street lamp |
150w Led Street Light Product Description:
Par NO Parameter |
LY-ST10130XX | LY-ST10150XX | LY-ST10180XX |
Input voltage | AC100V~240V 50/60HZ | ||
System consumption(W) | 130 | 150 | 180 |
Luminous flux(lm) | 21450 | 24450 | 28260 |
Chip Brand |
LUXEON 5050 LEYOND 5050 |
LUXEON 5050 LEYOND 5050 |
LUXEON 5050 LEYOND 5050 |
Current | 0.62A/220V | 0.72A/220V | 0.86A/220V |
CRI | >75 | ||
Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K | ||
Lifespan(hrs) | >50000 | ||
Luminous efficiency(lm/w) | >190 | ||
Dimmable | YES&NO | YES&NO | YES&NO |
IP Rating | IP66 | ||
Net Weigh(kg) | 6.9 | 6.9 | 6.9 |
Size(mm) | 642*290*120 | 642*290*120 | 642*290*120 |
Street Lighting Led Advantages:
• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%,power factor>0.98,UL certification.
• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning, high temperature,which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds.

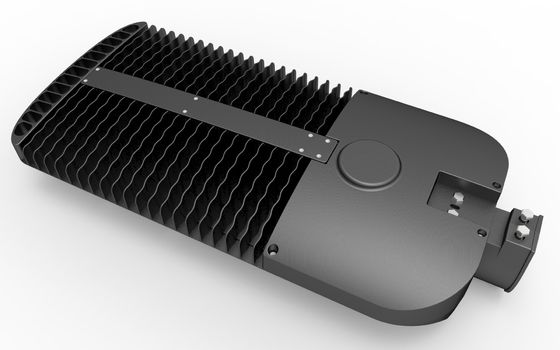

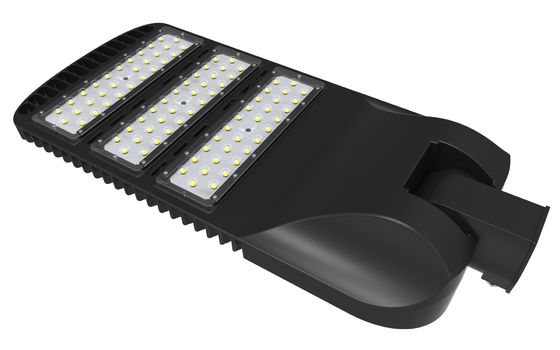

Led Street Lamp Product Picture
Outdoor Led Street Lights Features As Below :
1) 160-170lm/w on the Luminaire,black polish shining housing,IP66 rated.
2) Independent model design, 30w/ 50w/ 100w/ 120w/ 150w available.
3) Lumileds 5050 LEDs inside,plus Meanwell HLG driver,5 years warranty.
4) Compatible with dimmable type, photocell sensor and connect solar power.
