Product Details:
Payment & Shipping Terms:
|
| Item: | LED Street Light 120W | LED Source: | Lumileds 5050 Chips |
|---|---|---|---|
| Luminous: | 19200lm | Driver: | Meanwell Driver |
| CCT: | 2700-6500K | Lifetime: | >50000 Hours |
| Highlight: | led roadway lighting,led street lamp |
||

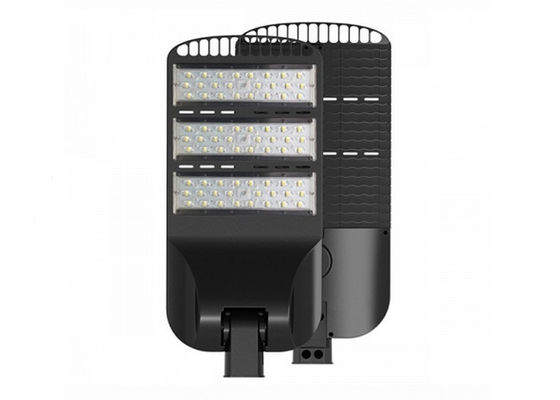

Top quality Sword Design Led Street Light 120w With Lumileds 5050 Chips&Meanwell Driver
LED street light 120w Specification:
|
Part Number |
LY-ST20120-XX |
|
Power |
120W |
|
Luminous flux |
18500-19200lm |
|
Light efficiency |
160lm/W |
|
Light source |
Lumileds 5050 |
|
Material |
High quality die-casting aluminum alloy |
|
Light degradation rate |
25000h ≤ 30% |
|
Color rendering index |
Ra≥80 |
|
Power Factor |
PF≥0.98 |
|
Brand Of Driver |
Meanwell Driver |
|
Life time |
≥50000hours |
|
Color temperature |
2700K-6500K |
|
Working temperature |
-30~+50°C |
|
Input Voltage |
AC90-260V |
|
Beam angle |
150*65 degree |
|
IP grade |
IP66 waterproof |
|
Product Brand |
LEYOND(OEM.ODM available) |
|
Warranty |
5 years |
|
Certificate |
ROHS, EMC, LVD,CB |
|
Application |
Parking lot, garden, courtyard, road, outdoor, etc. |
Outdoor Led Street Light Product Description
1. Use famous Lumileds chip inside, high efficiency.
2. Use integrated shell optic lens, high transmittance and perfect lighting distribution.
3. Easy to installation and maintance.
4. No UV or RF interference, No mercury or lead
5.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation
6. High quality, high efficiency, high CRI & luminous flux,
7. long life span>50000hrs
8. High brightness, low consumption, green for environment
9. Save 80% more energy compared with traditional lighting fixtures
10. Built-in LED driver with IC ensure stability of light, it can work efficiently under
11. AC85-265V in different countries and regions.AC12/24V led driver is also available
12. IP65 waterproof, outdoor lighting available.
Connect to the pole when install the lamp
Lamp tail adopt 60mm diameter, fitness for all the market throughout the world.
Install angle adjustable from 90-30 degree.
AC electrical wiring length 90 mm for standard product, If special length sure its available, just negotiate more.

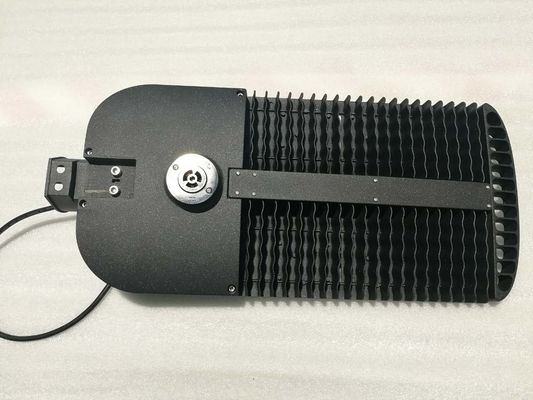

Back hood hole could be drilled, for extend function eg: NEMA 7 pin socket, daylight sensor socket.
NEMA 7 pin Socket
The most popular extend function of the smart dimming street light in this day and age.
Connect the 0-10v driver, Meanwell brand or Inventronics or Sosen optionable By control the LORA gataway to control each LORA master on the NEMA socket.
The way of Smart lighting system
LORA Gateway dimming system diameter
In order to make it compatible with your market LORA gataway, we suggest you take the LORA knobs and LORA master from your local
supplier.Of course if you wanna take the system from us here is warmly welcomed. contact Pure for more details.
Optical daylight sensor 3 pin introduction
When the sunshine getting weak in dusk, when the ambient surround lux lower than 10 lux (or by customer special indirection), the
light turn on automatically;After a night's light up work, then the dawn comes, when the surround lux higher than 30 lux (or by customer special indirection),
the light turn off automatically.
Quality Warranty:
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
