Product Details:
Payment & Shipping Terms:
|
| Product Name: | Led Stadium Light | Material: | Aluminum |
|---|---|---|---|
| Voltage: | AC100-240V | IP Rating: | IP66 |
| Driver Brand: | Meanwell Driver | Working Life: | 50000H |
| Led Brand: | Luxeon 5050 | Luminous Efficiency: | 160lm/w |
| Highlight: | led stadium lighting,led security flood light |
||
IP66 480w 500 Watt LED Stadium Lights dimmable Tennis Courts Lighting
Features
·Absolutely unique mold,make your lighting special and fantastic.
·Adoption LEYOND exclusive Lens with light transmittance up to 98%.
·Anti-glare and uniform light level to avoid any visual discomfort.
·There are 25°, 60°, 90° beam angle options for the Lens.
·High quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
·High luminous efficiency, Whole lamp output light efficiency >160LM/W.
·Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
·Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
·Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
·Green environmental protection, no UV light and infrared radiation, no mercury pollution.
·Nice appearance and non-fouling properties, Protection class IP66.
·Work without strobe, fast transient response；A wide range of working voltage
Technical parameter:
|
Par NO Parameter |
LY-ST30400XX | LY-ST30500XX |
| Input voltage | AC100V～240V 50/60HZ | |
| System consumption(W) | 400 | 500 |
| Luminous flux(lm) | 66000 | 80000 |
| Chip Brand |
LUXEON 5050 LEYOND 5050 |
LUXEON 5050 LEYOND 5050 |
| Beam Angle | 25°,60°, 90° | 25°,60°, 90° |
| Current | 1.91A/220V | 2.3A/220V |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K | |
| CRI | ＞75 | |
| Luminous efficiency(lm/w) | ＞160 | |
| Lifespan(hrs) | ＞50000 | |
| IP Rating | IP66 | |
| Dimmable | YES＆NO | YES＆NO |
| Size(mm) | 540*680*67 | 540*680*67 |
| Net Weigh(kg) | 19 | 19 |

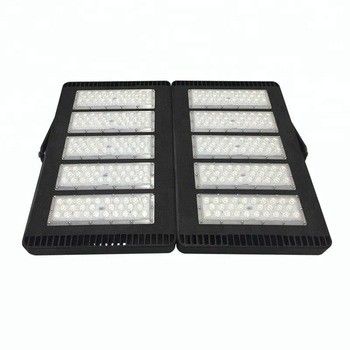

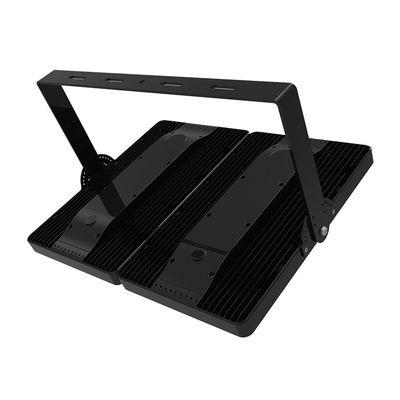

Product picture:
FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.
3. What can Leyond offer?
A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED Canopy Light, LED module, LED Street Light, ect.
4. How to place an order?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
5. How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.
6. How long will the warranty period last?
A: We usually offer 2 years free warranty for Bridgelux products. More detailed warranty policy, please contact our sales representatives.
