Product Details:
Payment & Shipping Terms:
|
| Power: | 150W | LED Chip: | Lumileds 5050 SMD |
|---|---|---|---|
| LED Driver: | Meanwell ELG-150 | IP Rating: | IP65 |
| CCT: | 2700-6500K | Warranty: | 5 Years |
| Beam Angle: | 150X65degree | Package: | 75cm×40cm×23cm (2 PCS ) |
| GW: | 9.6kg | Luminous Flux: | 24000lm |
| Dimmable: | YES&NO | CRI: | >80 |
| Pole Diameter: | 60mm | ||
| Highlight: | led roadway lighting,led street lamp |
||

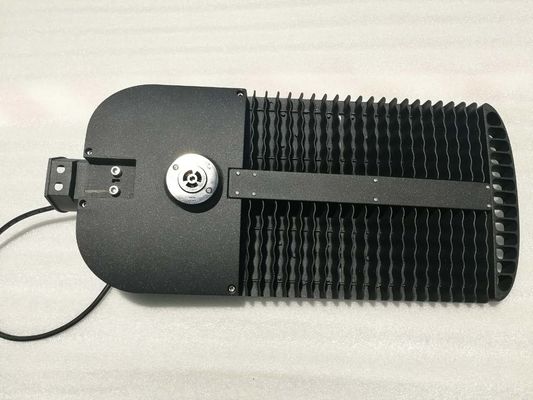

Outside Led Street Lighting / Cold White Roadway Led Lighting Energy Saving
Product Description:
1. Save 80% more energy compared with traditional lighting fixtures
2. Easy to install and use, secure and reliable
3. No UV or RF interference, No mercury or lead
4. Light body is made of good quality die casting aluminum, exiguity and unique design, excellent heat dissipation
5. long life span>50000hrs
6. High brightness, low consumption, green for environment
7. AC85-305V in different countries and regions.AC12/24V led driver is also available
8. Potection grade is IP65
Specification:
| Model | Inptut voltage | Sysem consumption | Luminous flux | Chip Brand | Beam Angle |
|---|---|---|---|---|---|
| LY-ST20150PW | AC100V～240V 50/60HZ |
150W | 18750lm | 3030 | 150*65° |
| LY-ST20150WW | 17400lm | ||||
| LY-ST20150NW | 18000lm |
| Model | CRI | Color Temperature | LED Driver | Luminous efficiency | Lifespan | IP Rating |
|---|---|---|---|---|---|---|
| LY-ST20150PW | ＞80 | WW:2700-3200K NW:4000-4500K PW:5000-6500K |
MEAN WELL ELG-150H |
＞120lm/W | ＞50000h | IP65 |
| LY-ST20150WW | ||||||
| LY-ST20150NW |
| Model | Dimmable | Size(mm) | Net Weight | Package Size(mm) | Gross Weight |
|---|---|---|---|---|---|
| LY-ST20150PW | YES＆NO | 642x290x120 | 8.8kg | 720*370*200 | 9.6 |
| LY-ST20150WW | |||||
| LY-ST20150NW |

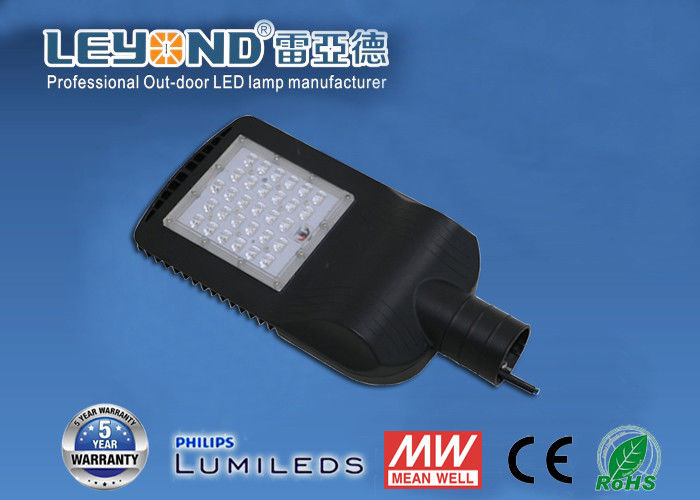

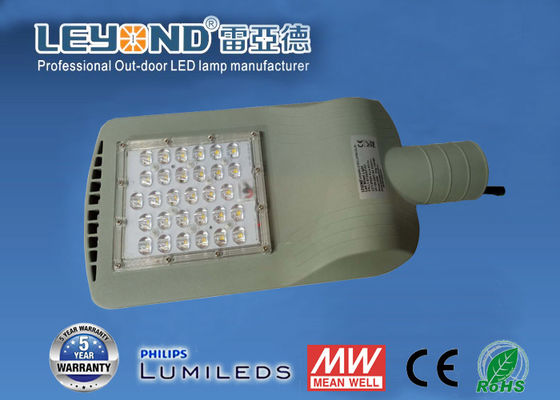

led street lighting series
| Model | Power | Lumens | LED Chip | Driver | Input Voltage |
| LY-ST20030-XX | 30W | 3600lm | 30pcs Lumileds 3030 | Meanwell HLG-40 | AC95-305V |
| LY-ST20040-XX | 40W | 4800lm | 30pcs Lumileds 3030 | Meanwell HLG-40 | AC95-305V |
| LY-ST20050-XX | 50W | 6000lm | 30pcs Lumileds 3030 | Meanwell HLG-60 | AC95-305V |
| LY-ST20060-XX | 60W | 7200lm | 30pcs Lumileds 3030 | Meanwell HLG-60 | AC95-305V |
| LY-ST20100-XX | 100W | 12000lm | 90pcs Lumileds 3030 | Meanwell HLG-100 | AC95-305V |
| LY-ST20120-XX | 120W | 14400lm | 90pcs Lumileds 3030 | Meanwell HLG-120 | AC95-305V |
| LY-ST20150-XX | 150W | 18000lm | 90pcs Lumileds 3030 | Meanwell HLG-150 | AC95-305V |
| LY-ST10030-XX | 30W | 4800lm | 30pcs Lumileds 5050 | Meanwell HLG-40 | AC95-305V |
| LY-ST10040-XX | 40W | 6400lm | 30pcs Lumileds 5050 | Meanwell HLG-40 | AC95-305V |
| LY-ST10050-XX | 50W | 8000lm | 30pcs Lumileds 5050 | Meanwell HLG-60 | AC95-305V |
| LY-ST10060-XX | 60W | 9600lm | 30pcs Lumileds 5050 | Meanwell HLG-60 | AC95-305V |
| LY-ST10100-XX | 100W | 16000lm | 72pcs Lumileds 5050 | Meanwell HLG-100 | AC95-305V |
| LY-ST10120-XX | 120W | 19200lm | 72pcs Lumileds 5050 | Meanwell HLG-120 | AC95-305V |
| LY-ST10150-XX | 150W | 24000lm | 72pcs Lumileds 5050 | Meanwell HLG-150 | AC95-305V |
Features:
Aging Test:
FAQ:
1. How many watt you have for Sword led Street light ?
---- 30w, 40w, 50w, 60w 100w 120w 150w
2.How is the warranty?
----We could offer 5 years warranty, and during our warranty:
1). Products returned within the warranty period must be Leyond product number & date code.
2). Products of unknown sources or without valid marking will not be accepted.
3). Replacement items will be sent together with customer's next order shipment.
3.What's your delivery time?
---- For sample order our delivery time is 3-5 working days. For General order, for about 8 working
days.
4.What kind of payment and shippmeng do you use?
----T/T,Westen Union,Paypal
----Fedex,UPS,DHL,TNT,HongKong Post,EMS or other ways of shippment.
5.Would you do OEM or ODM orders?
---- Sure, OEM and ODM orders are welcome
