Product Details:
Payment & Shipping Terms:
|
| Power: | 20W 30W 40W 50W 60W | LED Chip: | LUXEON 5050 |
|---|---|---|---|
| Battery: | 18650 Lithium Battery | CCT: | 2700-3000K,4000-4500K,6000-6500K |
| Material: | Aluminum+PC Lens | Luminous Flux: | 8000 |
| Highlight: | high power led floodlight,rgb led floodlight |
||

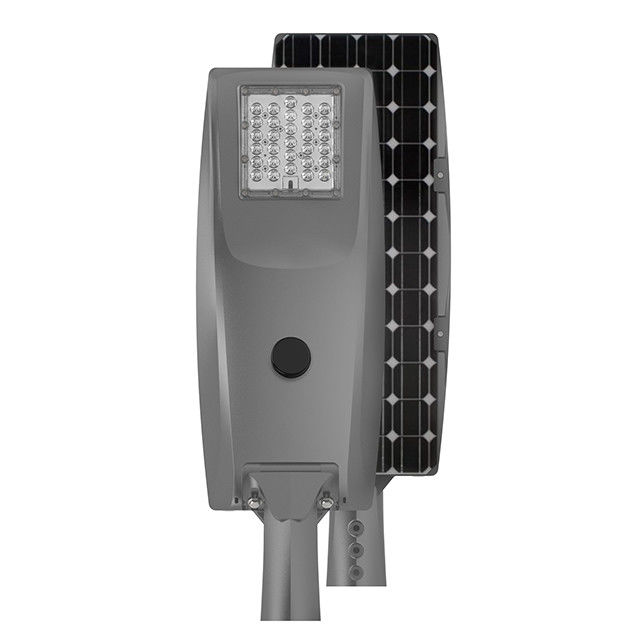

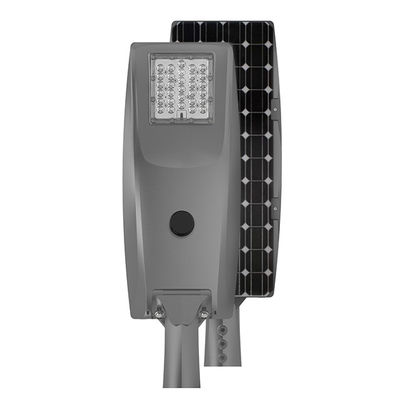

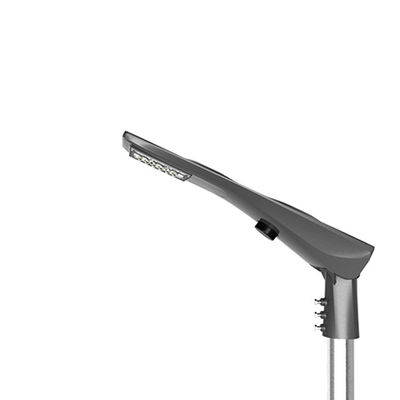

Ultra Bright 30W 50W Solar Power Led Street Lighting Time, Light ,Motion Control
01 Features of solar led street light
1. Adopting Luxeon 3030 LED High luminous efficiency, Whole lamp output light efficienty > 145lm/w.8% light efficiency higher than the same type lights in the market.
2. Adopting MPPT Controller, Constant pressure type. Stabilize the output voltage of the storage battery, such as constant 12V or 24V.The voltage is not adjustable, and the current varies according to the load power
3. Adopting 30W /18V monocrystalline silicon solar panel,LED Lights, Lithium Battery, Intelligent Controller Integrated Aluminum Alloy Shell.
4.Adopting lithium iron phosphate battery,fight the high temperature,keep long life.
5. Adopting alloy material as the main structure,with good rust prevention,corrosion protection.
6. time control + light sensor control+ motion sensor control
02 Specification of led street light
|
Par NO Parameter |
LY-ST30050PWLY- ST30050WWLY- ST30050NW | ||
| Battery | 18650 lithium battery 12V 50 Ah | ||
| Beam angle | 150x65°150x65°150x65° | ||
| Pole diameter | 60mm60mm60mm | ||
| Light output | 50W50W50W | ||
| Luminous flux(lm) | 80000 | ||
| Chip Brand | LUXEON 5050 | ||
| Solar panel | 50W /18V monocrystalline silicon | ||
| CRI | ＞70 | ||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
| Operating time | Full power >12 hours ,Intelligent mode 3-4 days | ||
| Control Mode | Light Control + Sensor | ||
| Material | Die Casting Aluminum | ||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Installation height | 4~8M | ||
| Size(mm) | 945*298*127 | ||
| Net Weigh(kg) | 10 | ||
| Package Size(mm) | 1000*340*180 | ||
| Package Quantity(Pcs) | 1 | ||
| Gross Weigh(kg) | 11.1 | ||
03.Details of solar led street lighting
04.led street light 30w Intelligent Control System Work Mode
05.Production Pictures of solar street light
06.Project Case all in one solar led street light
Welcome to contact us for more details.
FAQ
- How to proceed an order for led light?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
- How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.
- Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
