Product Details:
Payment & Shipping Terms:
|
| Power: | 200W | Input Voltage: | AC100-240V |
|---|---|---|---|
| LED Brand: | Lumileds 3030 Chips | Driver: | Meanwell HBG Series |
| IP Rate: | IP65 Protection | Beam Angle: | 60/90/120d |
| CRI: | >80 | Warranty: | 5 Years |
| Highlight: | led high bay lamps,led high bay lamp |
||

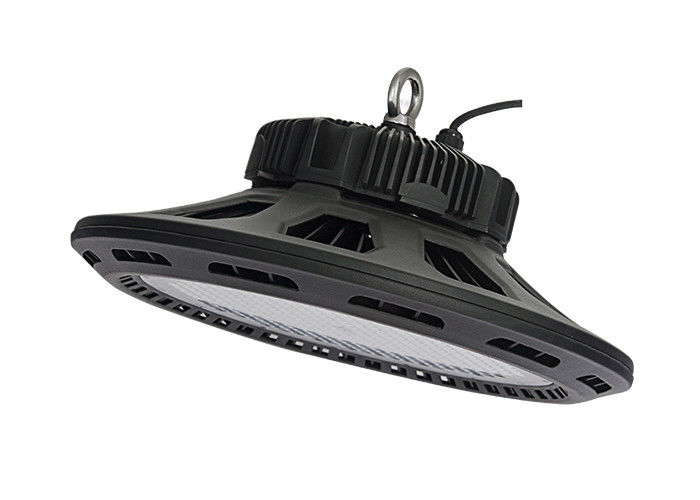

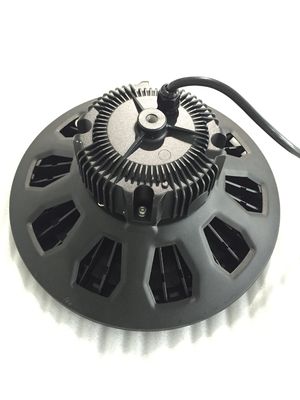

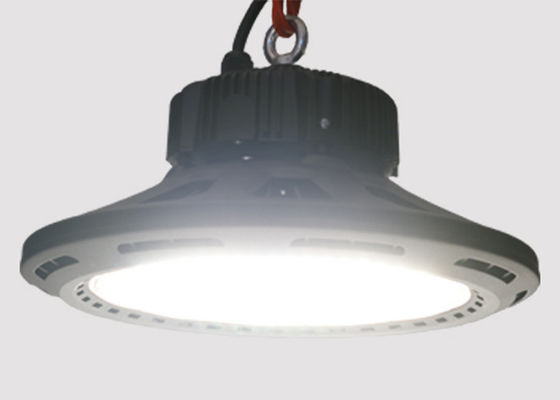

IP65 Grade Industrial UFO LED HighBay Light 200W Lumileds Chips & Meanwell Driver
UFO High Bay Light 150w Features:
• Up to 80% Energy-saving compared to metal halide lamp, mercury-free and 100% recyclable, energy saving and environmental protection
• Isolated internal led driver, easy installation, safety guaranteed
• High PF value 0.9 above and THD less 15% for decrease of electricity loss
• Up to120LM/W high light efficacy, 50000h above lifespan, 5 Years warranty, cost effective
• Power supply key components adopt world brand,No flicker, no delay, Instant on/off
• Designed for hook type, can be directly replaced is used to quick and easy
• installation to minimize retrofit and maintenance costs
• Small size, less weight and durable is the best choice for warehouses, stadiums, exhibition spaces, high ceiling lights.
• Using imported chip, LED encapsulation structure optimization, to achieve low light failure, high photosynthetic efficiency, energy conservation and environmental protection advantages.
Parameter
| Part No. | LY-HB38150-XX (XX for CCT) |
| Power | 150watts |
| Inptut voltage | AC100V～240V 50/60HZ |
| Lumens | 18150lm |
| LED Source | SMD3030 |
| LED QTY | 245pcs |
| LED Driver | / MEAN WELL Brand |
| Beam Angle | 60/90/120degree |
| CRI | ＞80 |
| Color Temperature | 2700-3000K,4000-4500K,5000-5700K |
| Meterial | Magnesium Aluminum + PC cover |
| Lifespan(hrs) | 50,000hrs |
| IP Rating | IP65 Protection |
| Product Size(mm) | Φ330X194 |
| NET Weight(KG) | 3.5KG |
| Warranty | 5 years |
| Power | Input Voltage | Luminous Flux | CCT | CRI | ED Type |
| 200W | 100-240V AC 50/60Hz | >24000lm | WW:2700-3200K NW:4000-4500K PW:5000-6500K | Ra>80 | SMD3030 |
| LED QTY | Driver | Product Size | IP Rating | Beam Angle | Net Weight |
| 360 PCS | MEAN WELL | Φ400X204mm | IP65 | 60° / 90°/ 120° | 3.95kg |
Pictures:
Aging Test:
100% of all lamps will be tested by auto testing line which including different voltage, and keep lighting for 24 hours to test its quality reliability and we will also test its temperature after 24 hours’ lighting. Each lamp should pass all these QC procedures before shipping to customer.
Instatllation Guide:
Application:
The lamp can be widely used in Warehouse,Industrial workshops,Logistics centers,Exhibition halls,Stadiums,Docks,Golf courses,Airport,Highway toll stations,supermarkets Light engineering.
FAQ:
1. What is your price?
---Based on your quantity and specification requirement, reasonable and affordable price.
2. How many years warratny?
---5 years warranty, 50000 hours lifespan.
3. What is the payment term?
---For sample order, we can accept T/T, Paypal, West Union, 100% in advance.
For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.
4. What's your fast delivery time for sample 1-10pcs?
---Within 2 day once receive your payment.
5. Can I add my Logo on the product label?
---Yes.
6. I don’t know how many Led High Bay Light should I use, can you advise?
---Yes, we can help you do the lighting design using software Dialux, IES file is available if you have the design team.
