Product Details:
Payment & Shipping Terms:
|
| Item: | 150W Modular LED Flood Light | Power: | 150w |
|---|---|---|---|
| LED Chip: | Bridgelux 5050 | Power Supply: | Meanwell |
| Voltage: | 100-240v AC | Beam Angle: | 25/60/90 Degree |
| Housing Color: | Black/White | Warranty: | 5 Years |
| Highlight: | commercial outdoor led flood light fixtures,led security flood light |
||

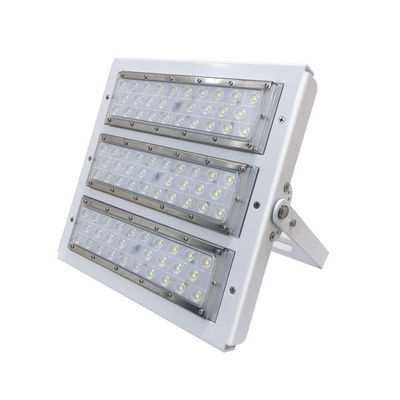

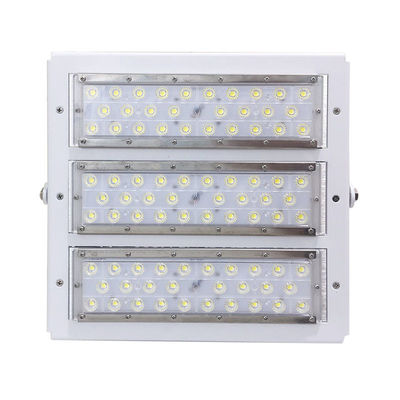

slim design Smd 5050 Led Flood Light 150w Outdoor stadium light 160lm/w
1. LED Light Source: SMD 5050
2. Input Voltage(V):AC90-305V
3. Lamp Power(W):150W
4. Lamp Luminous Flux(lm):24000
5. CRI (Ra>):70
6. Beam Angle:25°/60°/90°
7. Working Temperature(℃):-30 - 50
8. Working Lifetime(Hour):50000
9. Lamp Body Material:Aluminum
10. IP Rating:IP65
11. Certification:CE,RoHS
12. Warranty:5Years
13. LED Driver:MeanWell
14. Power Factor:0.98
15. Housing color:Black&White
16. Net Weight:4.5kg
Specifications:
|
Model
|
LY-ST23150XX
|
|
Product Name
|
150W Led Flood light
|
|
Modules number
|
3pcs
|
|
Power
|
150w
|
|
Input Voltage
|
AC90~305V 50/60Hz
|
|
Chip Brand
|
Bridgelux 5050
|
|
Led Qty
|
84pcs
|
|
Driver Brand
|
Meanwell HLG-150H/ ELG-150
|
|
Warranty
|
5 Years
|
|
Luminous flux
|
24000lm
|
|
Luminous efficiency
|
160lm/W
|
|
CRI
|
>70
|
|
CCT
|
WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
|
|
Beam Angle
|
24° 60° 90°
|
|
Carton Size
|
44×31x41cm
|
|
Gross weight
|
11KG
|
|
IP Rating
|
IP65
|
|
Meterial
|
Die-cast aluminum
|
|
Certification
|
CE&ROHS
|
Advantages:
1. Adoption LEYOND exclusive Lens with light transmittance up to 98%
2. There are 25°,60°, 90° beam angle options for the Lens
3. Adopt famous Bridgelux 5050 leds, Whole lamp output light effiency >160LM/W
4. High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification

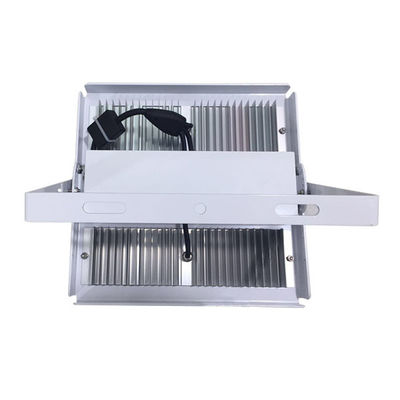

5. Die-cast aluminum housing material, with good heat dissipation
6. Support Photocell sensor, Zigbee, solar systerm and 0-10V dimming, make the lamp smart and more energy saving.
Outer box Size:440mmx410mmx310mm (2pc/CTN For 150W led flood light)
Delivery Time: Shipped in 7 days after payment
Trade terms:
Payment: T/T, western Union or Paypal
Shipping: By Express(EMS, DHL, UPS etc), By Air or By Sea
Delivery time:3-5 working days for sample order
Port: Shenzhen, China
Our service:
1. Your inquiry for our products will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your enquires in fluent English
3. OEM and ODM are welcomed
4. Make the products as your requirement
5. Protection of your sales area, ideas of design and all your private information.
