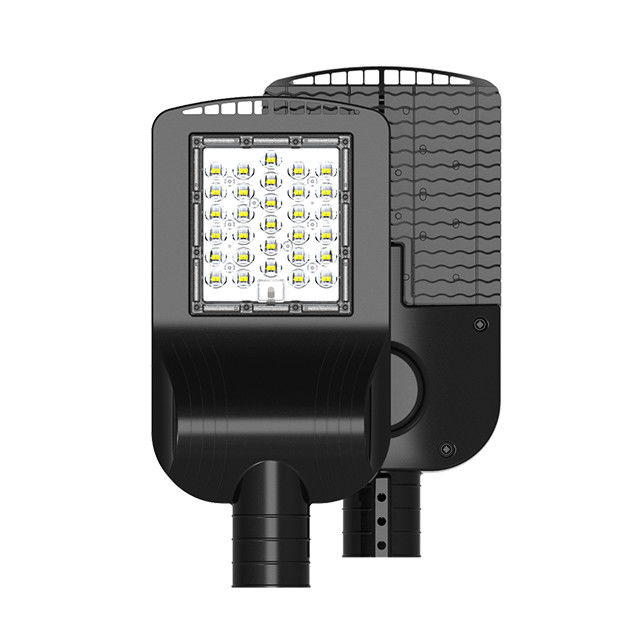

IP66 Waterproof Outdoor LED Street Lighting with Lumileds 5050 Chips 160lm/w

Exclusive design Sword Led Street Light 50w 160lm/w Lumileds Chips insdie,IP66 rated

1) Absolutely unique mold,make your lighting special and fantastic.

2) Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

3) Anti-glare and uniform light level to avoid any visual discomfort.

4) high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

5) Adopting 3030 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.

6) Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.

7) Intelligent Control System for Optional

Details:

Adopting LUMILEDS 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the
market, high light transmittance up to 98%.

Very high quality MW power supply, input voltage AC 85-277V. The power efficiency is more than 90%, power factor greater than
0.98.

Introduction of product advantages with Intelligent Control System

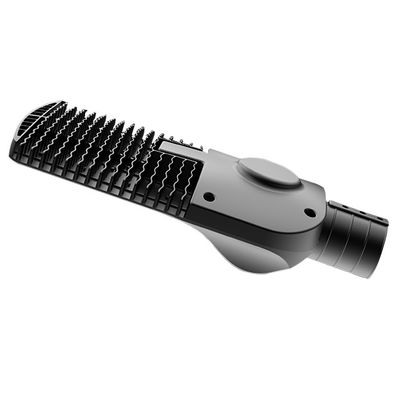

Connect to the pole when install the lamp

Lamp tail adopt 60mm diameter, fitness for all the market throughout the world.
Install angle adjustable from 90-30 degree.
AC electrical wiring length 90 mm for standard product, If special length sure its available, just negotiate more.
Back hood hole could be drilled, for extend function eg: NEMA 7 pin socket, daylight sensor socket.

NEMA 7 pin Socket

The most popular extend function of the smart dimming street light in this day and age.
Connect the 0-10v driver, Meanwell brand or Inventronics or Sosen optionable By control the LORA gataway to control each LORA master on the NEMA socket.
The way of Smart lighting system

LORA Gateway dimming system diameter

In order to make it compatible with your market LORA gataway, we suggest you take the LORA knobs and LORA master from your local
supplier.Of course if you wanna take the system from us here is warmly welcomed. contact Pure for more details.

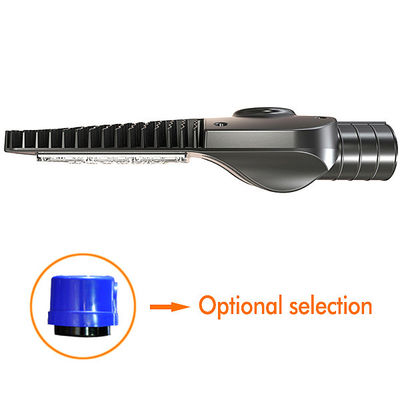

Optical daylight sensor 3 pin introduction

When the sunshine getting weak in dusk, when the ambient surround lux lower than 10 lux (or by customer special indirection), the
light turn on automatically;After a night's light up work, then the dawn comes, when the surround lux higher than 30 lux (or by customer special indirection),
the light turn off automatically.

Production Pictures:

For More Information, Pls Feel Free To Contact Us

FAQ:

- How to proceed an order for led light?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.

- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

- How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.

- Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
