| Item: | LED Street Light 150w | LED Source: | 3030 |
|---|---|---|---|
| Watt: | 150w | Luminous: | 19500lm |
| Driver: | Meanwell Driver | Beam Angle: | 150*70 Degree |
| CCT: | WW/NW/PW | Lifetime: | >50000 Hours |
| Control: | Daylight Control, Motion Sensor | IP Rated: | IP66 |
| Highlight: | led roadway lighting,led street lamp |
||

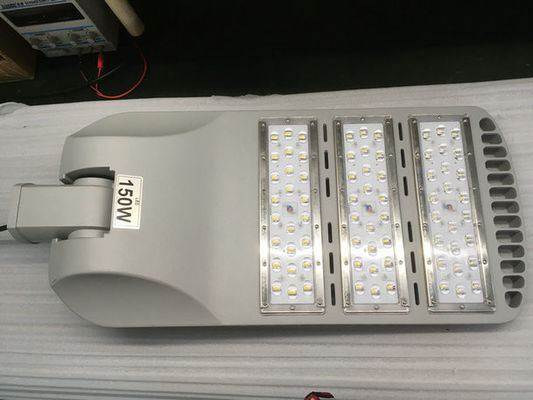

Sword Design 150w Led Street Light Bat Wing Beam Angle,Lumileds chips,Meanwell driver
• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%,
power factor>0.98,UL certification.
• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher
than the same type lights in the market, with higher light transmittance up to 98%.

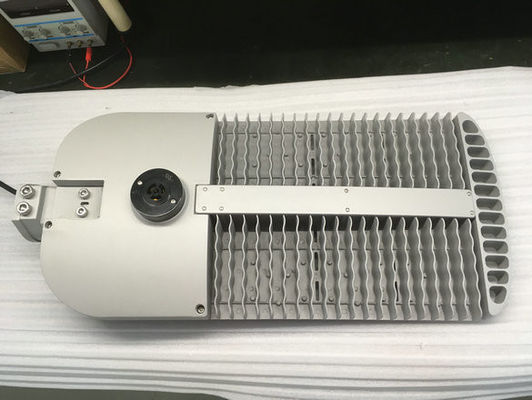

• Duct type thermal design, reduce the weight of the light and ensure good heat
dissipation, lower luminous decay, and also extend life span of the leds. Adopting the
popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy
saving; with good resistance to over-current,over-voltage, lightning, high temperature,
which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights
frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury
pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the
death rate of the leds.
Our Advantages:
1. Completely independent design, which include the heat sink, PC lens and frame. To make your product more unique and attractive. Meanwhile, the light source are package by our own factory. Quality controll will be more stable.
2.Adopt famous Lumileds 3030 chip inside, high efficiency can up to 120 lm/w.

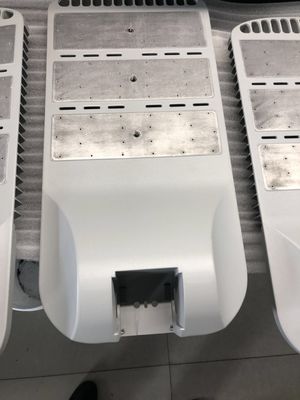

3. Die-casting housings, streamline heat sink with good heat dissipation
death rate of the leds.
8. Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
|
Part No. |
LY-ST20030-XX | LY-ST20040-XX | LY-ST20050-XX | LY-ST20060-XX |
|
Power |
30W | 40W | 50W | 60W |
|
Input Voltage |
AC100-240V | AC100-240V | AC100-240V | AC100-240V |
|
Lumens Efficiency |
120lm/w | 120lm/w | 120lm/w | 120lm/w |
|
Beam Angle |
150*70d | 150*70d | 150*70d | 150*70d |
|
CCT |
2700-6500K | 2700-6500K | 2700-6500K | 2700-6500K |
|
Dimension |
410*200*90mm | 410*200*90mm | 410*200*90mm | 410*200*90mm |
|
IP Grade |
IP65 | IP65 | IP65 | IP65 |
|
Pole Diameter |
φ50 mm | φ50 mm | φ50 mm | φ50 mm |
|
Net Weight |
2.8 KG | 2.8 KG | 2.8 KG | 2.8 KG |
|
Dimming and sensor |
Available | Available | Available | Available |
|
Install Height |
3-8 M | 3-8 M | 3-8 M | 3-8 M |
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 90-305V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 7-8M height
