Product Details:
Payment & Shipping Terms:
|
| Item: | Spiderman Street Light 100w | LED Source: | Lumileds 5050 |
|---|---|---|---|
| Watt: | 120w | Luminous: | 16,000lm |
| Driver: | Meanwell Driver | Beam Angle: | 150*70 Degree |
| CCT: | 2700-6500K | Lifetime: | >50000 Hours |
| Control: | Daylight Control, Motion Sensor | IP Rated: | IP66 |
| Housing Material: | Aluminum | ||
| Highlight: | led roadway lighting,led street lamp |
||
Spiderman Street Light 120w Lumileds Chips 160lm/w&Meanwell driver,5 years warranty
1.Completely independent design, which include the heat sink, PC lens and frame. To make your product more unique and attractive. Meanwhile, the light source are package by our own factory. Quality controll will be more stable.
2.Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market,higher light transmittance up to 98%.
3.Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
4.Support Photocell sensor, Zigbee, solar systerm and 0-10V dimming, make the lamp smart and more energy saving.
5.Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
6.Absolutely unique mold,make your lighting special and fantastic.
7.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
8.Anti-glare and uniform light level to avoid any visual discomfort.
9.high quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
10.Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning,high temperature, which fully ensure long life span and high stability of the products.
11.No need frequent replacements of lights and regular maintenance.
12.Green environmental protection, no UV light and infrared radiation, no mercury pollution.
|
Par NO Parameter |
LY-ST40120PW
|
LY-ST40120WW
|
LY-ST40120NW
|
| Inptut voltage | AC90V～305V 50/60HZ | ||
| Sysem consumption(W) | 100 | 100 | 100 |
| Luminous flux(lm) | 19500 | 16700 | 18600 |
|
Chip Brand |
LUXEON 5050 / BRIDGELUX CHIP 5050 |
LUXEON 5050 / BRIDGELUX CHIP 5050 |
LUXEON 5050 / BRIDGELUX CHIP 5050 |
| Beam Angle | 150*65 DEG | 150*65 DEG | 150*65 DEG |
| CRI | ＞70 | ||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
| LED Driver |
MEAN WELL HLG-120H / ELG-150
|
||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP65 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) |
720x340x69
|
720x340x69 | 720x340x69 |
| Net Weigh(kg) | 7.3 | 7.3 | 7.3 |
| Package Size(mm) |
740*368*110
|
740*368*110 | 740*368*110 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 8.4 | 8.4 | 8.4 |

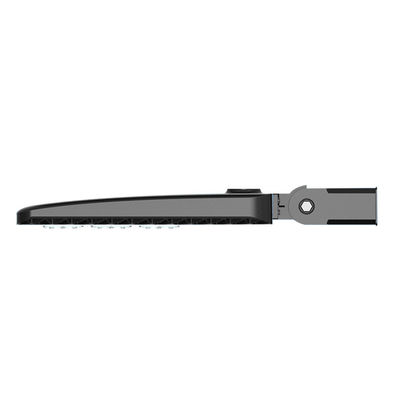

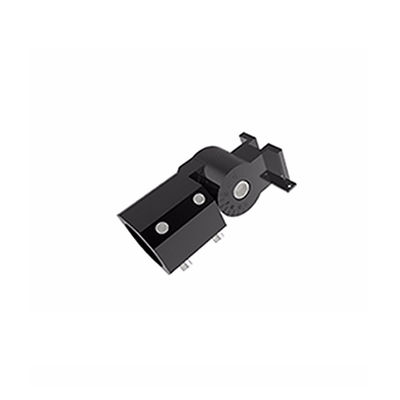

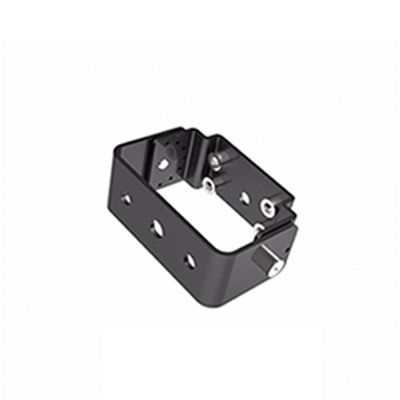

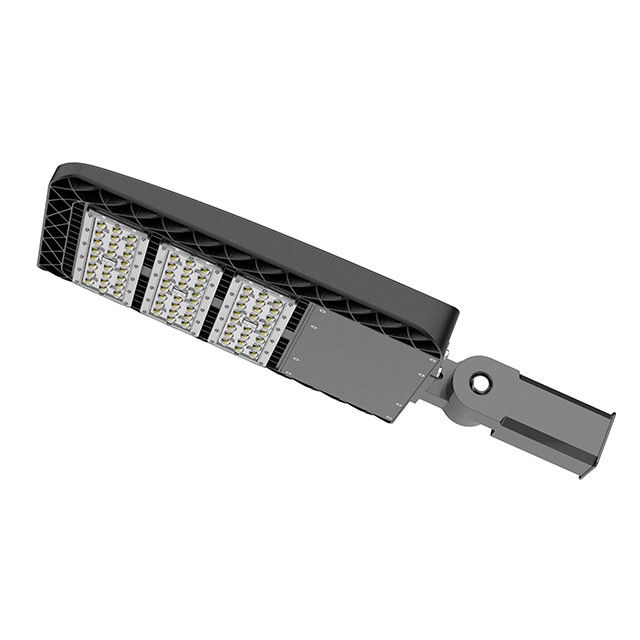

Product Picture
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 90-305V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 7-8M height
Our Services:
1. Factory price, large monthly output
2. 5years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4. Timely delivery, let you win biggest markets advantage
5. Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order
Welcome to contact us for more details.
FAQ
- How to proceed an order for led light?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
- How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large
quantity, please confirm with your order.
- Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
