Product Details:
Payment & Shipping Terms:
|
| Item: | Spiderman Street Light 100w | LED Source: | Lumileds 5050 |
|---|---|---|---|
| Watt: | 100w | Luminous: | 16,000lm |
| Driver: | Meanwell Driver | Beam Angle: | 150*70 Degree |
| CCT: | 2700-6500K | Lifetime: | >50000 Hours |
| Control: | Daylight Control, Motion Sensor | IP Rated: | IP66 |
| Housing Material: | Aluminum | ||
| Highlight: | led roadway lighting,led street lamp |
||

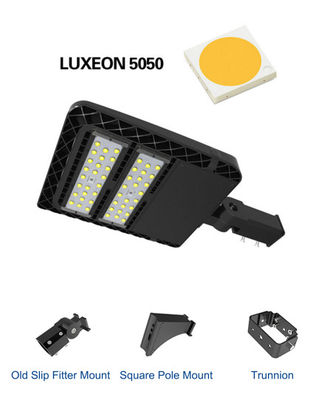

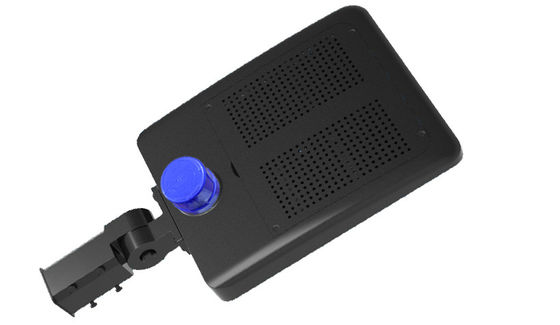

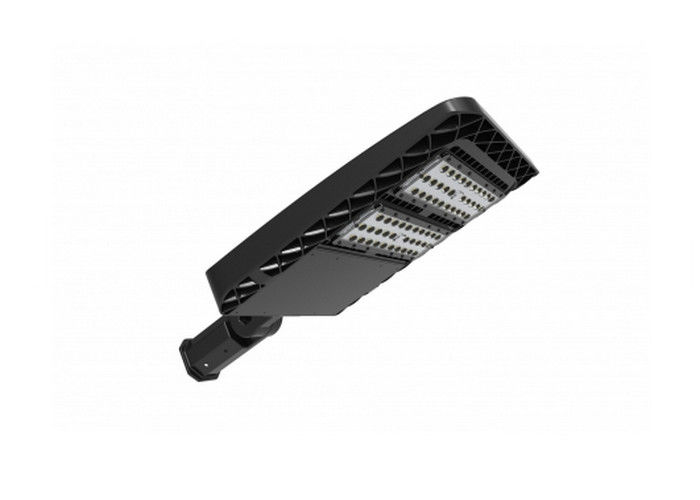

Spiderman Outside 100W LED Street Light Lumileds 5050 Chips 160lm/W
·Absolutely unique mold,make your lighting special and fantastic.
.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
.Anti-glare and uniform light level to avoid any visual discomfort.
·high quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
·Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market,higher light transmittance up to 98%.
·Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
·Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning,high temperature, which fully ensure long life span and high stability of the products.
·No need frequent replacements of lights and regular maintenance.
·Green environmental protection, no UV light and infrared radiation, no mercury pollution.
|
Par NO Parameter |
LY-ST40080XX | LY-ST40100XX | LY-ST40120XX |
| Input voltage | AC100V～240V 50/60HZ | ||
| System consumption(W) | 80 | 100 | 120 |
| Luminous flux(lm) | 13200 | 16200 | 18960 |
| Chip Brand |
LUXEON 5050 LEYOND 5050 |
LUXEON 5050 LEYOND 5050 |
LUXEON 5050 LEYOND 5050 |
| Current | 0.37A/220V | 0.47A/220V | 0.56A/220V |
| CRI | ＞75 | ||
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K | ||
| Lifespan(hrs) | ＞50000 | ||
| Luminous efficiency(lm/w) | ＞160 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| IP Rating | IP66 | ||
| Net Weigh(kg) | 6.3 | 6.3 | 6.3 |
| Size(mm) | 640*340*66 | 640*340*66 | 640*340*66 |
Our Advantages:
1. Completely independent design, which include the heat sink, PC lens and frame. To make your product more unique and attractive. Meanwhile, the light source are package by our own factory. Quality controll will be more stable.
2.Adopt famous Lumileds 5050 chip inside, high efficiency can up to 160 lm/w.
3. Die-casting housings, streamline heat sink with good heat dissipation
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 90-305V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 7-8M height
Our Services:
1. Factory price, large monthly output
2. 5years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4. Timely delivery, let you win biggest markets advantage
5. Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order
FAQ
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
A: Low MOQ, 1pc for sample checking is available
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we offer 5 years warranty to our products.
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. Fordefective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
