Product Details:
Payment & Shipping Terms:
|
| LED Chip: | Bridgelux Flip Chip | Driver Brand: | / Meanwell |
|---|---|---|---|
| PF: | >0.95 | CCT: | 2700-3000K,4000-4500K,6000-6500K |
| Beam Angle: | 120degree | Material: | Aluminum+tempered Glass |
| Luminous Flux: | 16500 | Power: | 150w (100w,200w,250w Available) |
| Highlight: | high power led floodlight,rgb led floodlight |
||

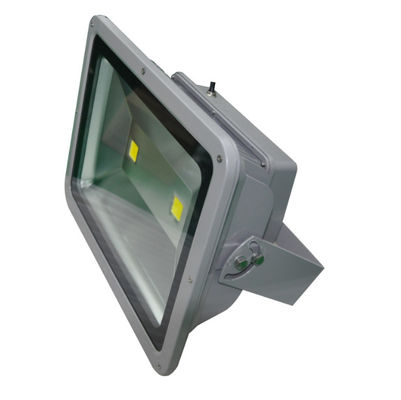

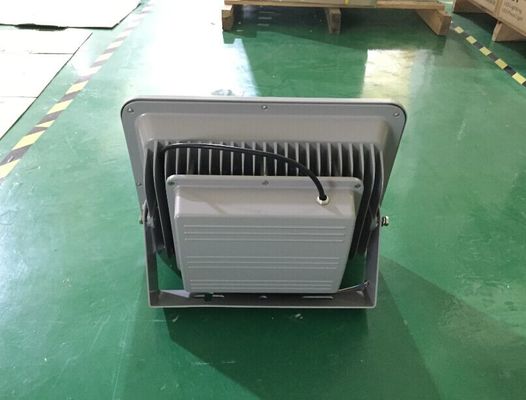

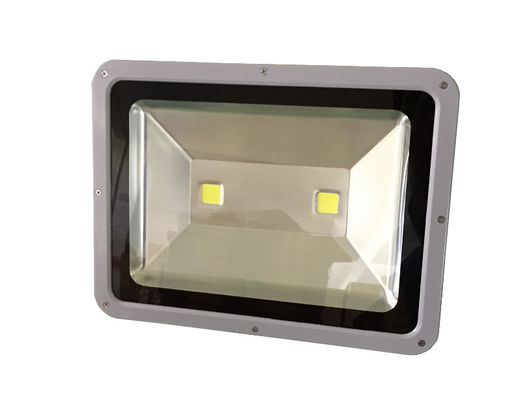

150w Flood light Specification:
| Product Model | Power | LED Quantity | Luminous Flux | Light Efficiency | CRI | CCT | Beam Angle |
| LY-FL10150-XX | 150W | 2*80w module | 16,500 LM | 110 LM/W | >70 | 2700-6500K | 120d |
| Product Model | Input Voltage | Product Size | IP Grade | Life Span | Material | Power Range |
| LY-FL10150-XX | AC100-240V | 425X325X200mm | IP65 | >50,000 hrs | Alumium+Glass | 150/200/250w |
Features:
1) Multi-Chip on Lead Frame, Single Module LED Package Design
2) System Design Integrating Power Supply, LED Light Engine, and Heat Sink.
3) Over Current, Over Voltage, Over Heat, Thunder Protection
4) Choice of Correlated Color Temperatures.
5) Long lifespan for LED 50,000 hrs
6) 100% Recycle, No Pollution, and UV,IR.
Application:
1) Projector / Floodlight.
2) Tunnel Lighting / Pathway Lighting / Park Lighting.
3) Sport center,Signboard Lighting.
Operation and Storage Condition:
1) Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2) Input Voltage 100~240V AC, 50/60Hz.
3) Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
4) Mounting Height : Suitable for 8~10m height.
Quality Control:
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
Operation and Storage Condition
1) Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2) Input Voltage 100~240V AC, 50/60Hz
3) Storage Ambient Temperature -20 to +65°C, Relative Humidity 5~95%
4) Mounting Height : Suitable for 5~12m height
FAQ:
