Product Details:
Payment & Shipping Terms:
|
| Product Item: | LED Street Light 60W | LED Chip: | Lumileds Luxeon |
|---|---|---|---|
| LED Driver: | Meanwell/Sosen/others | IP Rating: | IP65 |
| CCT: | 2700-6500K | Material: | Die-casting Aluminum+PC |
| Warranty: | 5 Years | Beam Angle: | 150X70degree |
| Highlight: | outdoor led street light,led street lamp |
||

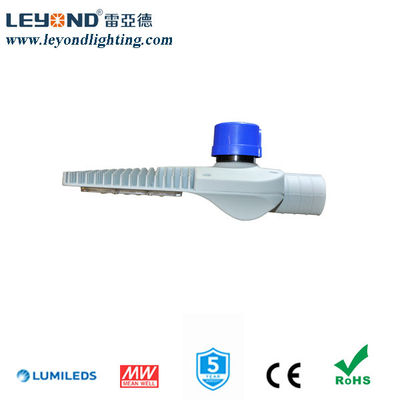

Die Cast Aluminum Led Street light 50W with IP66 Waterproof rating for roadway lighting fixture.
Features:
1. For this type led street light, mould open by Leyond including module heat sink, PC lens, frame. We packaging LED by self, quality can be controlled stable.
2. Original 3030 led, High efficiency up to 130lm/w
3. 60w led street light is an affordable lamp, Meanwell HLG driver with 5 years warranty
4. Die-casting housings, streamline heat sink with good heat dissipation
5. Short lead time, sample order:5-7 business day, bulk order: 10
Specification:
| Model | LY-ST20030XX | LY-ST20040XX | LY-ST20050XX | LY-ST20060XX |
| Product Name | Led street light | |||
| Input Voltage | AC 100-240V 50/60HZ | |||
| Power Factor | >0.95 | |||
| Power Efficiency | >88% | |||
| Current | 0.14A/220V | 0.19A/220V | 0.24A/220V | 0.29A/220V |
| Luminous Efficiency | 130lm/w | 125lm/w | 122lm/w | 120lm/w |
| Luminous Flux | 3900lm | 5000lm | 6100lm | 7200lm |
| CRI | >80 | |||
| Beam Angle | 150*70° | |||
| CCT | 2700K-6500K | |||
| Led Chip | 60pcs 3030 SMD Led | |||
| Led Driver | Meanwell HLG-40 | Meanwell HLG-60 | ||
| Warranty | 5years | |||
| IP Rating | IP65 | |||
| Dimension(mm) | 410*200*90 | |||
| Pole diameter | 50mm | |||
| Housing Material | Die Casting Aluminum | |||
| NW | 2.8kg | |||
Quality Control:
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
Operating Guide:
1. Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2. Input Voltage 85~265V AC, 50/60Hz
3. Storage Ambient Temperature -20 to +65°C, Relative Humidity 10~90%
