Product Details:
Payment & Shipping Terms:
|
| Led Chip: | Luxeon 3030 Chips | Material: | Aluminum+PC |
|---|---|---|---|
| IP Rating: | IP66 | Product Dimension: | 300*78*42MM |
| Working Life: | 50000 Hours | CCT: | 3000K 4000K, 5700K, 6000K |
| Beam Angle: | 150x65 Deg | ||
| Highlight: | led lighting module,led modular |
||
High luminous efficiency, 30W Luminous flux over 4890 lm; Whole lamp output light effiency over 160LM/W.
Unique second-time light distribution, no light pollution, no glare, no flickering.
Modular structure making the lamp more easier and faster to be designed ,easy to do replacement and maintaining.A variety of combinations can multiply increase the brightness and illumination.
Modular concept, piece combinations as your require. Can satisfy any number of lanes and width combinations. With IP66 Protection, adapt to any weather conditions.
Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood.
CHEM module design adopts the professional optical design of free-curve- surface, fully uses the features that LED light in directionally to improve the utilization of LED maximumly under offered a space-saving of light efficiency,and makes shines more than 80% on the road,and avoids light pollution maximumly caused by street lights.
|

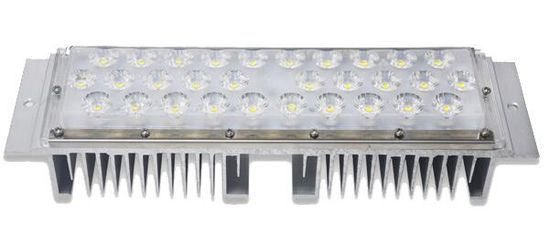

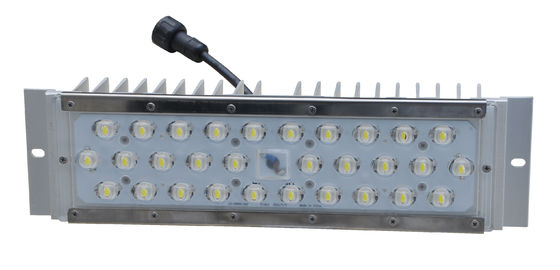

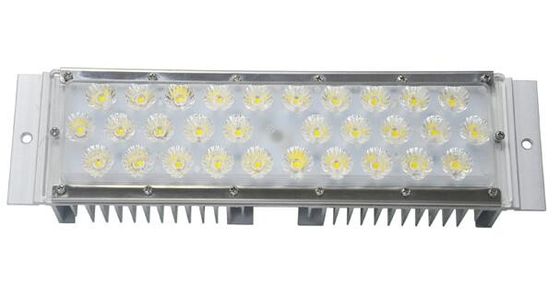

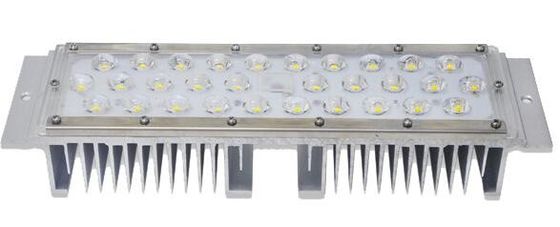

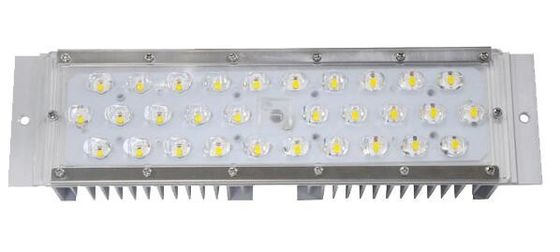

Product Name
|
Led module light
|
|
IP Rating
|
IP66
|
|
Chip Brand
|
5050
|
|
Product Dimension
|
300*78*45MM
|
|
Net weight
|
0.63KG
|
|
Light Body& Lampshade
|
Aluminum Alloy and PC
|
|
Working Life
|
50000hrs
|
|
Working Temperature
|
-30 ~ +60
|
|
Storage Temperature
|
-10 ~ +85
|
|
Beam Angle
|
25 60 90 degree
|
|
Working Humidity
|
10%~90%
|
|
CCT
|
Wattage
|
CRI(Ra)
|
Voltage
|
Current
|
Luminous Efficiency
|
Luminous Flux
|
||
|
2700K-3200K
|
30W
|
70
|
45-52 V
|
0.67A
|
163lm/W
|
4890lm
|
||
|
40W
|
0.89A
|
162lm/W
|
6480lm
|
|||||
|
45W
|
1.0A
|
160lm/W
|
7200lm
|
|||||
|
4000K-4500K
|
30W
|
0.67A
|
170lm/W
|
5100lm
|
||||
|
40W
|
0.89A
|
168lm/W
|
6720lm
|
|||||
|
45W
|
1.0A
|
165lm/W
|
7450lm
|
|||||
|
5000K-6500K
|
30W
|
0.67A
|
173lm/W
|
5190lm
|
||||
|
40W
|
0.89A
|
172lm/W
|
6880lm
|
|||||
|
45W
|
1.0A
|
170lm/W
|
7650lm
|
|||||
|
Product Dimension
|
|
|
300*78*42mm
|
|||||
|
Net weight
|
0.63kg
|
|||||||
|
Material
|
Aluminum Alloy and PC
|
|||||||
|
LED Type
|
5050
|
|||||||
|
LED Qty
|
28 pcs
|
|||||||
|
Warranty
|
5 years
|
|||||||
|
Working Life
|
>50000hrs
|
|||||||
|
Working Temperature
|
-30 ~ +60
|
|||||||
|
Storage Temperature
|
-10 ~ +85
|
|||||||
|
Working Humidity
|
10%~90%
|
|||||||
LED Module For Flood Light 50W-1000W
LED Module For Canopy light/Gas Station light 60W-150W
|
Spiderman led street light
80w-120w
Whole lamp:150-160lm/w
|
Spiderman led stadium light
100w
Whole lamp:110-120lm/w
|
Sword led street light
30w-150w
Whole lamp:150-160lm/w
|
led low bay light
100w-240w
Whole lamp:120-130lm/w
|
|
led canopy light
60w-150w
Whole lamp:150-160lm/w
|
Stadium led flood light
240w-480w
Whole lamp:150-160lm/w
|
Modular led Flood light
50w-500w
Whole lamp:150-160lm/w
|
led module light
50w
Whole module:170-180lm/w
|
