Product Details:
Payment & Shipping Terms:
|
| Power: | 180 Watts | LED Chip: | Lumileds 5050 |
|---|---|---|---|
| LED Driver: | Meanwell | IP Rating: | IP66 |
| PF: | >0.98 | CCT: | 2700-6500K |
| Material: | Aluminum+PC Optical Lens | Beam Angle: | 150*65 Degree (bat Wing Angle) |
| Luminous Flux: | 28260 Lm | ||
| Highlight: | outdoor led street light,led roadway lighting |
||

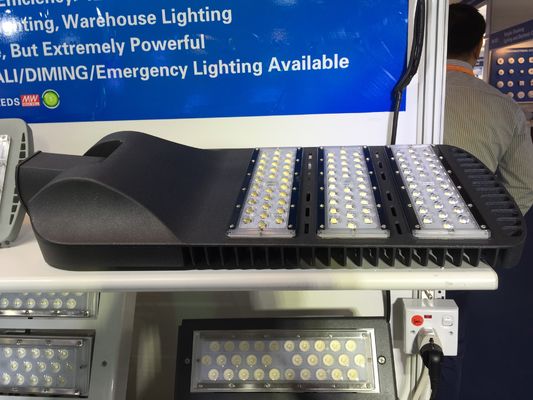

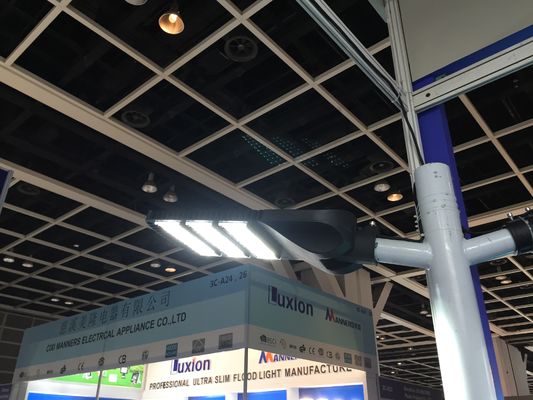

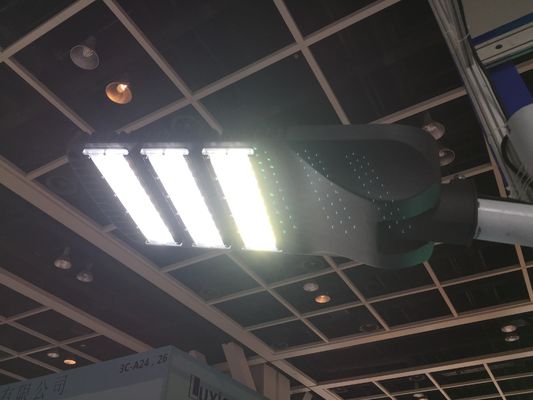

IP66 Waterproof 180W Module LED Street Light AC 100-240V with Photocell 5 Years Warranty
Led street light 180w Specification:
| Product Model | Power | LED Quantity | Luminous Flux | Light Efficiency | CRI | CCT | Beam Angle |
| LY-ST10180 | 180W | 84 pcs | 28260LM | 157 LM/W | 70 | 2700-6500K | 150x65d |
| Product Model | Input Voltage | Product Size | IP Grade | Life Span | Material | Power Range |
| LY-ST10180 | AC100-240V | 642x290x120mm | IP66 | 50000 hrs | Alumium+PC | 120-200w |
Advantages:
Quality Control:
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
Operating Guide:
1. Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2. Input Voltage 85~265V AC, 50/60Hz
3. Storage Ambient Temperature -20 to +65°C, Relative Humidity 10~90%
4. Mounting Height : Suitable for 5~10m height
FAQ:
