Product Details:
Payment & Shipping Terms:
|
| LED Chips: | Luxeon 5050 | CRI (Ra>): | 70/80 For Optional |
|---|---|---|---|
| LED Power: | 50W | Beam Angle: | 150*65 Degree |
| Driver: | Meanwell Driver | Housing: | Aluminum Housing |
| Highlight: | led roadway lighting,led street lamp |
||

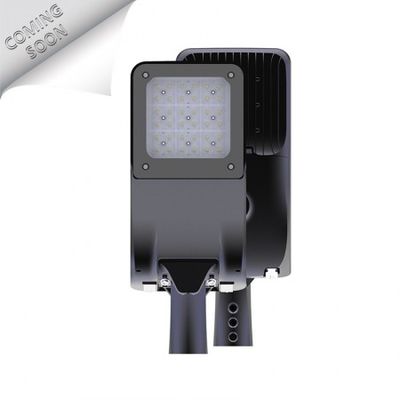

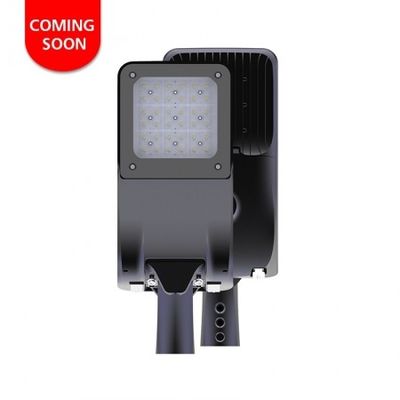

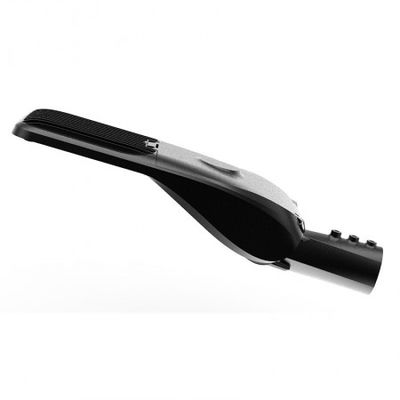

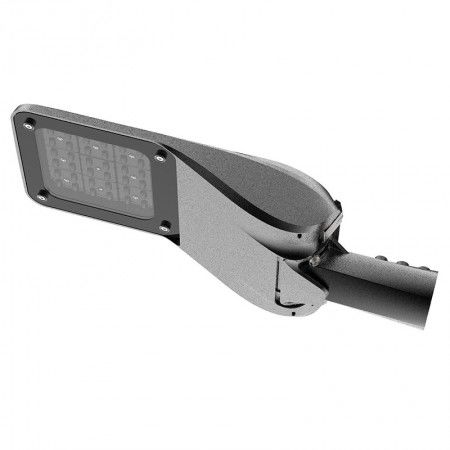

High Efficiency 4500 Lumen 30 Watt LED Backyard Street Road Lights with Grey Color 4500k Die-casting Aluminum
Specification
|
Par NO Parameter |
LY-ST50050PW |
LY- ST50050WW |
LY- ST50050NW |
|
Inptut voltage |
AC90V~305V 50/60HZ |
||
|
Sysem consumption(W) |
50 |
50 |
50 |
|
Luminous flux(lm) |
6400 |
5500 |
6000 |
|
Chip Brand |
LUXEON 5050/LEYOND 5050 |
LUXEON 5050/LEYOND 5050 |
LUXEON 5050/LEYOND 5050 |
|
Beam Angle |
160*85 DEG |
160*85 DEG |
160*85 DEG |
|
CRI |
>70 |
||
|
Color Temperature |
Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
||
|
LED Driver |
MEAN WELL HLG-60H / ELG-75 |
||
|
Luminous efficiency(lm/w) |
>128 |
||
|
Lifespan(hrs) |
>50000 |
||
|
IP Rating |
IP66 |
||
|
Dimmable |
YES&NO |
YES&NO |
YES&NO |
|
Size(mm) |
619x240x139 |
619x240x139 |
619x240x139 |
|
Net Weigh(kg) |
4.9 |
4.9 |
4.9 |
|
Package Size(mm) |
660*280*190 |
660*280*190 |
660*280*190 |
|
Package Quantity(Pcs) |
1 |
1 |
1 |
|
Gross Weigh(kg) |
5.8 |
5.8 |
5.8 |
Application
Suitable for the highways, urban roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
Features
Absolutely unique mold,make your lighting special and fantastic.
Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
Anti-glare and uniform light level to avoid any visual discomfort.
high quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, higher light transmittance up to 96%.
Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
Green environmental protection, no UV light and infrared radiation, no mercury pollution.
Nice appearance and non-fouling properties, Protection class IP66.
Work without strobe, fast transient response. A wide range of working voltage.
Warning
1. Do Not Use Other Devices for LED Street Light ,Installation Such as Stabilizer, Regulator ...etc
2. Do Not Open the Light Engine
3. Do Not Soak the LED Street Light into Water
4. Do Not Light up the System Without Grounding.
Operation and Storage Condition
Operation Ambient Temperature -20~+50℃, Relative Humidity 20-90%.
Input Voltage: 100-240V AC 50-60Hz
Storage Ambient Temperature -30~+60℃, Relative Humidity 5-95%.
Mounting Height: Suitable for 3-8m height
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. Fordefective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
