Product Details:
Payment & Shipping Terms:
|
Product Name:: | Led Street Lighting | Lamp Luminous Efficiency(lm/w):: | 160LM/W |
---|---|---|---|
Driver: | Waterproof Driver | CRI (Ra>):: | >70 |
Working Lifetime(Hour):: | 50000 | Certification:: | CE,ROHS |
LED Chip Brand: | Luxeon 5050 | Warranty:: | 3 Years |
Highlight: | outdoor led street light,led street lamp |

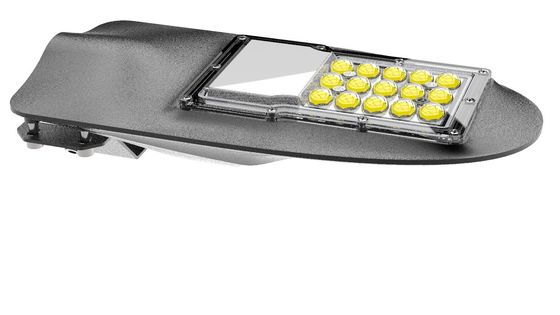

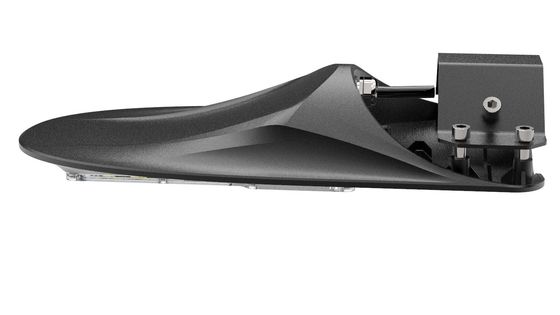

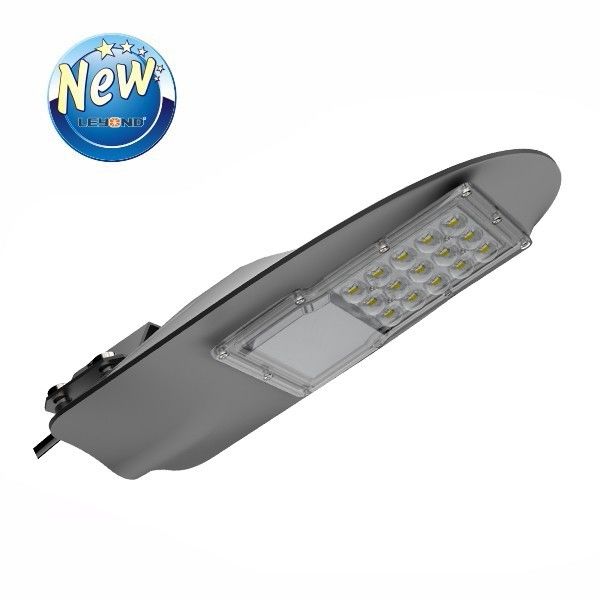

Rural Garden King Led Street Lighting 20W 30W 160lm/w Outdoor Lamp
mini led street light 160LM/W
Powers: 20w/30w
Luxeon 5050 chip LED
Waterproof driver
3 Years Warranty
IP66
Asymmetry Optic Lens Cover : 150*70degree beam Angle
Product Specification:
Par NO Parameter |
LY-ST50030PW | LY- ST50030WW | LY- ST50030NW |
Inptut voltage | AC100V~240V 50/60HZ // DC12-24V | ||
Sysem consumption(W) | 30 | 30 | 30 |
Luminous flux(lm) | 4850 | 4260 | 4650 |
Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
Beam Angle | 150*65 DEG | 150*65 DEG | 150*65 DEG |
CRI | >70 | ||
Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
LED Driver | LEYOND | ||
Luminous efficiency(lm/w) | >160 | ||
Lifespan(hrs) | >50000 | ||
IP Rating | IP65 | ||
Dimmable | YES&NO | YES&NO | YES&NO |
Size(mm) | 300x150x66 | 300x150x66 | 300x150x66 |
Net Weigh(kg) | 1.2 | 1.2 | 1.2 |
Package Size(mm) | 330*180*100 | 330*180*100 | 330*180*100 |
Package Quantity(Pcs) | 1 | 1 | 1 |
Gross Weigh(kg) | 1.6 | 1.6 | 1.6 |
Product IES Testing:
Mini King LED Street Light-30W/40W/50W/60W
• High luminous flux,reach 150-170LM/W.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• No diffuse reflection effect, with high light efficiency, coupled with a unique secondary optical design, can be irradiated to a wider area, once again improve the efficiency of light has reached the purpose of energy conservation.
• Anti-glare and uniform light level to avoid any visual discomfort.
• Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 96%.
• Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
Our Services:
1. Factory price, large monthly output
2. 5years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4. Timely delivery, let you win biggest markets advantage
5. Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order
Applications:
Street lighting; park lighting; roadway lighting; fence lighting; pathway lighting; campus lighting; ramp lighting; boat dock lighting; sidewalk lighting; remote area lighting; private road lighting; farm & ranch lighting.
FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.
3. What can Leyond offer?
A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED Canopy light,LED module, LED Street Light, ect.
4. How to place an order?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
5. How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.
6. How long will the warranty period last?
A: We usually offer 2 years free warranty for Bridgelux products. More detailed warranty policy, please contact our sales representatives.
