Outdoor LED Flood Light 200W LED Stadium light with 160Lm/W high efficiency.

Name: Outdoor LED Flood Light 200W LED Stadium light with 160Lm/W high efficiency.
Brand: Leyond
SKU: LY-ST23200-XX
Rating: 4.6 (167 reviews)

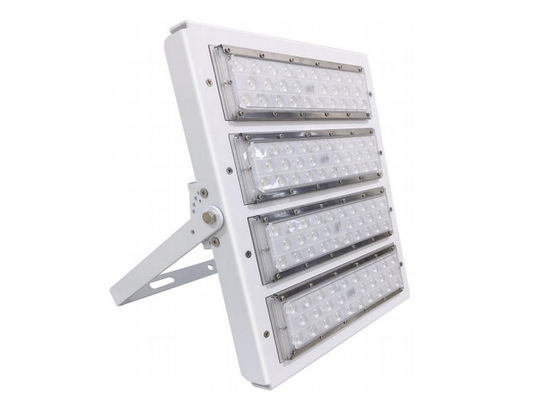

Large Image : Outdoor LED Flood Light 200W LED Stadium light with 160Lm/W high efficiency.

Product Details:

Place of Origin:	China
Brand Name:	Leyond
Certification:	CE ROHS ENEC CB
Model Number:	LY-ST23200-XX

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	Negotiable
Packaging Details:	HWL
Delivery Time:	5-8day
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000-30000/month

Contact Now

Detailed Product Description

Product Name:	LED Flood Light 200W	Ip Rating:	IP 66
Warranty(year):	5	Lamp Body Material:	Aluminum Housing
Working Temperature(℃):	-30 - 60	Lamp Luminous Efficiency(lm/w):	160Lm/W
Highlight:	led outdoor flood lights , led security flood light

01. structure

Outdoor LED Flood Light 200W LED Stadium light with 160Lm/W high efficiency. 0

02. Features

Adoption LEYOND exclusive Lens with light transmittance up to 98%.

l Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

There are 25°,60°, 90° beam angle options for the Lens.
Scientifically-designed heat dissipater with much better cooling effect.
High luminous efficiency, Whole lamp output light effiency >160LM/W.
High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

l For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.

03. Specification

Par NO Parameter	LY-ST23200PW	LY-ST23200NW	LY-ST23200WW
Input voltage	AC100V～240V 50/60HZ
System consumption(W)	200	200	200
Luminous flux(lm)	32000	29600	26500
Chip Brand	LUXEON 5050 LEYOND 5050	LUXEON 5050 LEYOND 5050	LUXEON 5050 LEYOND 5050
Beam Angle	25°,60°, 90°	25°,60°, 90°	25°,60°, 90°
CRI	＞75
Color Temperature	WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
LED Driver	MEAN WELL ELG-200 / XLG-240H
Luminous efficiency(lm/w)	＞160
Lifespan(hrs)	＞50000
IP Rating	IP66
Dimmable	YES＆NO	YES＆NO	YES＆NO
Size(mm)	32041076	32041076	32041076
Net Weigh(kg)	5.6	5.6	5.6
Package Size(mm)	514390135	514390135	514390135
Package Quantity(Pcs)	1	1	1

04. Package

Outdoor LED Flood Light 200W LED Stadium light with 160Lm/W high efficiency. 1

05. production

Outdoor LED Flood Light 200W LED Stadium light with 160Lm/W high efficiency. 2

06. testing

Outdoor LED Flood Light 200W LED Stadium light with 160Lm/W high efficiency. 3

07. exhibition

Outdoor LED Flood Light 200W LED Stadium light with 160Lm/W high efficiency. 4

Outdoor LED Flood Light 200W LED Stadium light with 160Lm/W high efficiency. 5
