Product Details:
Payment & Shipping Terms:
|

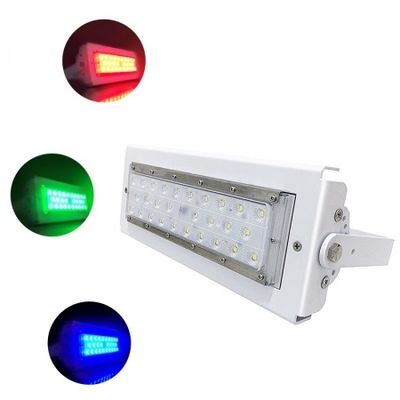

| Product Item: | RGB LED Flood Lihgt | Ip Rating: | IP 66 |
|---|---|---|---|
| LED Chips: | Lumileds Luxeon 5050 | Warranty(year): | 5 |
| Driver: | Meanwell | Lamp Body Material: | Aluminum |
| Working Temperature(℃): | -30 - 60 | Lamp Luminous Efficiency(lm/w): | 160Lm/W |
| Color Temperature(cct): | RGB | ||
| Highlight: | led outdoor flood lights,commercial outdoor led flood light fixtures |
||
01. structure
02. features
1) Control mode:RF/IR/DMX512. Standard DMX512 input interface and a built-mode controller , can be realized in whole or segmented light change control, especially, it can achieve water and complicated effects.
2) Adoption LEYOND exclusive Lens with light transmittance up to 98%.
3) Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
4) There are 25°,,60°, 90° beam angle options for the Lens.
5) Master or Slave function, if set master, it can stead of the external controller.
6) Reliable constant current driver designed to ensure high-power LED lights for a stable job.
7) Superior ability to adapt to the environment, protection grade IP65, can adapt to a variety of indoor and outdoor temperature and humidity environment. The lamp base is aluminum alloy, solid ,anti-aging, anti-variant, long service life.
8) More than 16777 thousand kinds of colors can be realized output, with good light efficiency, beautiful color and so on.
9) Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
03. specification
Electrical Specifications
| Model | modules number | Power | Input Voltage | Input Current | Power factor | Power efficiency |
| LY-ST23050RGB | 1 | 50W |
AC90~305V 50/60Hz |
0.23A/220VAC |
>0.99/115VAC >0.95/230VAC |
>90% |
Photometric Specifications
| Emitting Color | λd / CCT | Typical Lumens | Forward Voltage | Forward Current |
| RED | 620-630 nm | 1800 lm | 13-17V | 680mA(MAX) |
| GREEN | 520-530 nm | 2200 lm | 21-25V | 680mA(MAX) |
| BLUE | 460-465 nm | 560 lm | 21-25V | 680mA(MAX) |
| WHITE | R+G+B | 2000lm | 13-25V | 1500mA(MAX) |
Mechanical Specifications
| Model | Power | Carton Size | gross weight | Net Weight | IP Rating | Meterial |
| LY-ST23050RGB | 50W | 320X128X76MM | 4.5kg | 3.9kg | IP66 | Aluminum +PC |
04. package
05. production
06. testing
07. exhibition
08. our main product
