Product Details:
Payment & Shipping Terms:
|
| Item: | Street Light 150w | LED Source: | Lumileds 5050 |
|---|---|---|---|
| Watt: | 150w | Lum Efficiency: | >160 Lm/w |
| Driver: | Meanwell Driver | Beam Angle: | 150*70 Degree |
| CCT: | 2700-6500K | Lifetime: | >50000 Hours |
| IP Rated: | IP66 | Housing Material: | Aluminum |
| Highlight: | led roadway lighting,led street lamp |
||
01. Feature of led street light
• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%, power factor>0.98,UL certification.
• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds.
02. Specification of 150w led street light
|
Par NO Parameter |
LY-ST40120PW |
LY- ST40120WW |
LY- ST40120NW |
|
Inptut voltage |
AC90V～305V 50/60HZ |
||
|
Sysem consumption(W) |
120 |
120 |
120 |
|
Luminous flux(lm) |
19500 |
16700 |
18600 |
|
Chip Brand |
LUXEON 5050 / BRIDGELUX CHIP 5050 |
LUXEON 5050 / BRIDGELUX CHIP 5050 |
LUXEON 5050 / BRIDGELUX CHIP 5050 |
|
Beam Angle |
150*65 DEG |
150*65 DEG |
150*65 DEG |
|
CRI |
＞70 |
||
|
Color Temperature |
Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K |
||
|
LED Driver |
MEAN WELL HLG-120H / ELG-150 |
||
|
Luminous efficiency(lm/w) |
＞160 |
||
|
Lifespan(hrs) |
＞50000 |
||
|
IP Rating |
IP65 |
||
|
Dimmable |
YES＆NO |
YES＆NO |
YES＆NO |
|
Size(mm) |
720x340x69 |
720x340x69 |
720x340x69 |
|
Net Weigh(kg) |
7.3 |
7.3 |
7.3 |
|
Package Size(mm) |
740*368*110 |
740*368*110 |
740*368*110 |
|
Package Quantity(Pcs) |
1 |
1 |
1 |
|
Gross Weigh(kg) |
8.4 |
8.4 |
8.4 |
03. structure of led street lamp

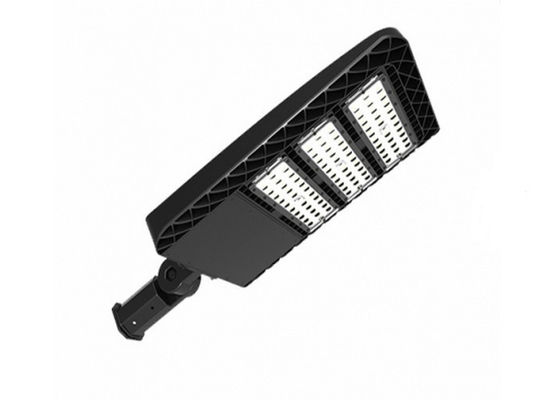

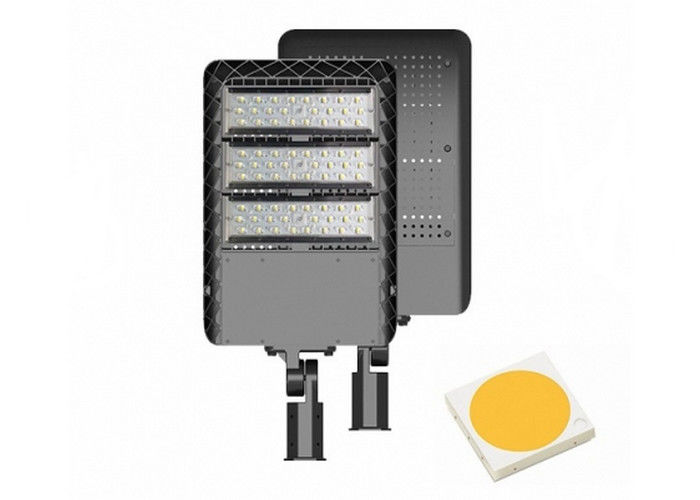

04.Product Pictures outdoor led street light
FAQ:
1. How many watt you have for led street light ?
---- 80w, 100w,120w.130w.150w.180w
2.How is the warranty?
----We could offer 5 years warranty, and during our warranty:
1). Products returned within the warranty period must be Leyond product number & date code.
2). Products of unknown sources or without valid marking will not be accepted.
3). Replacement items will be sent together with customer's next order shipment.
3.What's your delivery time?
---- For sample order our delivery time is 3-5 working days. For General order, for about 8 working
days.
4.What kind of payment and shippmeng do you use?
----T/T,Westen Union,Paypal
----Fedex,UPS,DHL,TNT,HongKong Post,EMS or other ways of shippment.
5.Would you do OEM or ODM orders?
---- Sure, OEM and ODM orders are welcome
Welcome to contact our sales team for more informations, you will get professional and reliable serive in a short time.
