Product Details:
Payment & Shipping Terms:
|
| LED Chip: | Lumileds 5050 Chips | Driver Brand: | Meanwell |
|---|---|---|---|
| PF: | >0.95 | Efficiency: | 160 Lm/w |
| IP Protection: | IP66 | Warranty: | 5 Years |
| CCT: | 2700-6500K | Materials: | Aluminum+PC |
| Application: | Petrol, Gas Station, Garage，warehouse, | ||
| Highlight: | canopy led lights,led canopy lighting |
||
High Lumen 160lm/w New Design LED Canopy Light for Gas and Petrol Station
01. Specification Of Gas Station Led Canopy Lights
| Input Voltage | AC100-240V 50/60HZ | ||
| System Consumption(w) | 150 | 150 | 150 |
| Luminous Flux(lm) | 24000 | 22000 | 23200 |
| Chip Brand | Luxeon5050/Leyond5050 | Luxeon5050/Leyond5050 | Luxeon5050/Leyond5050 |
| Color Temperature | 2700-6500K | ||
| CRI | >70 | ||
| Beam Angle | 95 DEG | ||
| LED Driver | MEANWELL HLG-150H/ELG-150 | ||
| Luminous Efficiency(lm/w) | >160 | ||
| Lifespan(hrs) | >50000 | ||
| IP Rating | IP66 | ||
| Dimmable | YES&NO | YES&NO | YES&NO |
| Size(mm) | 383*383*61 | 383*383*61 | 383*383*61 |
| Net Weight(kg) | 6 | 6 | 6 |
| Package Size(mm) | 415*415*120 | 415*415*120 | 415*415*120 |
02. Feature Of Gas Station Canopy Lights
Using LUXEON 5050 led chip to ensure high lumen and long life. Whole lamp output light effiency >160LM/W.
Adoption LEYOND exclusive Lens with light transmittance up to 98%.
Seals using silicone rubber, oil proof, aciduric, alkali fast, fire resistant.The unit construction of lamp adopt waterproof and dustproof design, It can meet the indoor andoutdoor needs .
Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
There are 95°beam angle for your optional, optimized light distribution design solution.
High luminous efficiency, High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
The whole lamp with the powder coating is brighter, without fading and corrosion.
Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation:No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.

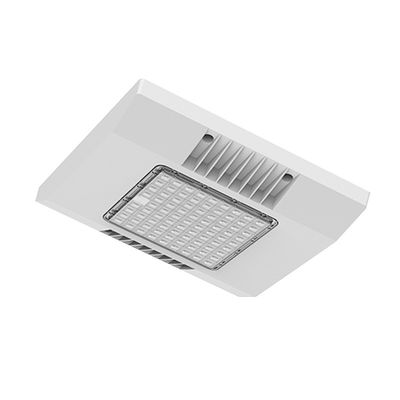

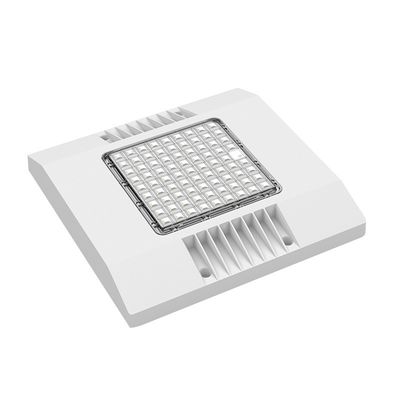

03. Outlook Of Led Gas Station Light

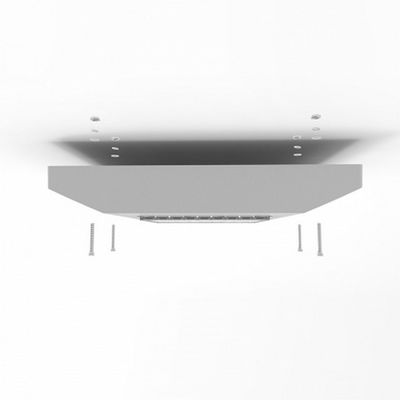

04. Dimension Of Canopy Led Lights

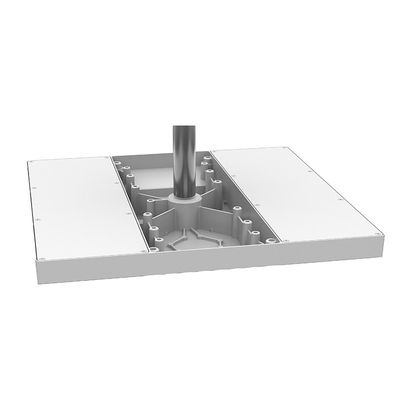

05. More Pictures of Outdoor Canopy Lights
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. Fordefective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
