Product Details:
Payment & Shipping Terms:
|
| Ip Rating: | IP 66 | Input Voltage(v): | AC85-265V |
|---|---|---|---|
| Lamp Luminous Flux(lm): | 16500,3000,9600 | Working Temperature(℃): | -20 - 60,-20 - 50 |
| Product Name: | Waterproof 20w 40w 60w Integrated All In One Solar Led Street Light | Lamp Body Material: | Aluminum,ABS |
| Highlight: | outdoor led street light,led street lamp |
||
High Power Toolless LED Street Light outdoor Lighting for Road IP66 waterproof
01. Specification Of Led Street Light
| Input Voltage | AC100-305V 50/60HZ | ||
| System Consumption(w) | 180 | 180 | 180 |
| Luminous Flux(lm) | 30250 | 27000 | 29000 |
| Chip Brand | Luxeon5050/Leyond5050 | Luxeon5050/Leyond5050 | Luxeon5050/Leyond5050 |
| Color Temperature | PW 5000-6500K | WW 2700-3200K | NW 4000-4500K |
| CRI | >70 | ||
| Beam Angle | 150*60 DEG | ||
| LED Driver | MEANWELL XLG-200 | ||
| Luminous Efficiency(lm/w) | >160 | ||
| Lifespan(hrs) | >50000 | ||
| IP Rating | IP66 | ||
| Dimmable | YES&NO | YES&NO | YES&NO |
| Size(mm) | 394*220*128 | 394*220*128 | 394*220*128 |
| Net Weight(kg) | 3.6 | 3.6 | 3.6 |
| Package Size(mm) | 430*250*180 | 430*250*180 | 430*250*180 |
02. Feature Of Led Street Lighting Fixtures
·Absolutely unique mold,make your lighting special and fantastic.
.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
.Anti-glare and uniform light level to avoid any visual discomfort.
·high quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
·Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market,higher light transmittance up to 98%.
·Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
·Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning,high temperature, which fully ensure long life span and high stability of the products.
·No need frequent replacements of lights and regular maintenance.
·Green environmental protection, no UV light and infrared radiation, no mercury pollution.

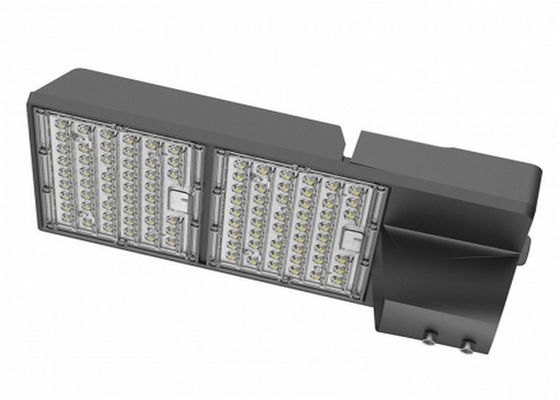

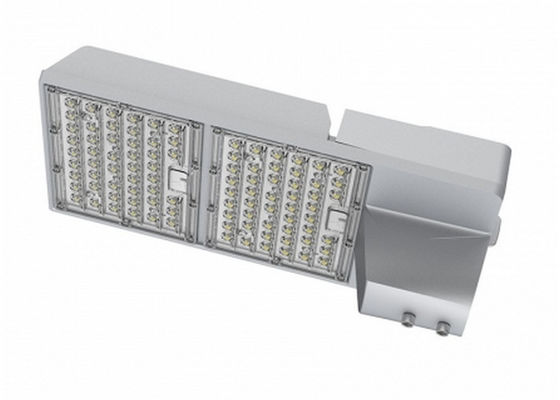

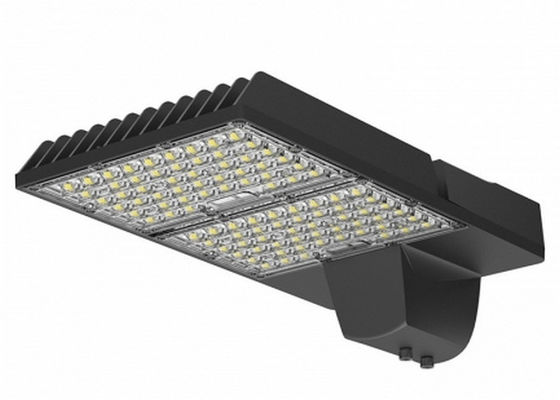

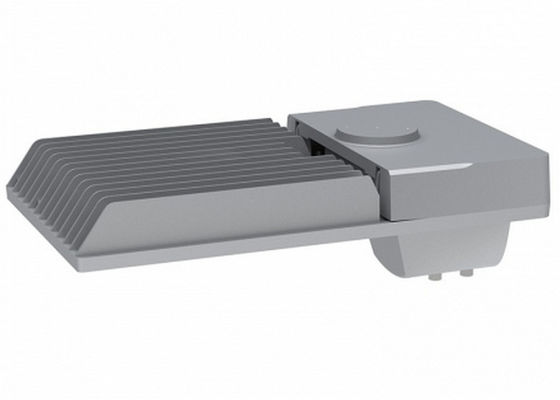

03. Product Picture Of Street Light Led
04. Dimension Of Led Street Light Retrofit
05. More Watt Of High Power Led Street Light
FAQ
1. What`s the chip and driver does the light use?
Answer: Bridgelux chip and Meanwell Driver.
----- We are the Strategic Partners with Taiwan Epsitar and US Bridgelux company. And also have good relationship with MW company. We keep all material are original and qualified before our production.
2. How many years warranty are you provide?
Answer: We will offer 5 Years warranty,
3. What is the lighting range does the lamp can made?
Answer: The lighting range can reached 50-100M,
4. How height does the lamp should be installated?
Answer: the suitable installtion height is 8-10m.
5. What is your website? Are you manufacturer?
Answer: Yes, we are professional manufacturer which special on High Power led light developing and producing from 2005. Welcome to visit our werbsite on www.leyond.com.cn. And if you have time to China. Please feel free to contact us. Your coming will be highly welcomed for us.
