Product Details:
Payment & Shipping Terms:
|
| Product Name: | 20W-50W Solar LED Street Lights | Lamp Luminous Flux(lm): | 8000lm |
|---|---|---|---|
| Input Voltage(v): | 12V | Cri (ra>): | 80 |
| Item Type: | Solar LED Street Lights | Working Lifetime(hour): | 50000hrs |
| Warranty(year): | 3 Years Warranty | Application: | Roadway Lighting, Packing Lighting, Pathway Lighting, Street Lighting |
| Lamp Body Material: | Die Cast Aluminum Housing | Lamp Luminous Efficiency(lm/w): | 160lm/w |
| Led Light Source: | Luxeon 5050 | Ip Rating: | IP66 |
| Color Temperature(cct): | Warm White: 2700-3200K, Neutral White: 4000-4500K, Cold White:5000-6500K | Solar Panel: | 20W-50W /18V Monocrystalline Silicon |
| Power: | 20W, 30W, 40W, 50W | Control Mode: | Light Control+ Motion Sensor |
| Operating Time: | Full Power>12 Hrs, Intelligent Mode 3-4 Days | Privated Design: | Laser Logo |
| Battery: | 18650 Lithium Battery 12V 30Ah/50Ah |
20W-50W Integrated All In One Solar LED Street Lights 160LM/W IP66 Waterproof
Product Features:
1. 1000 cycle 18650 Lithiun battery, 5 years spen life.
2. Working Mode, full power>12 hours, intelligent mode 4-5 days
3. Specific design for high way and government project,install high up to 13M.
4. Mono-crystalline solar panel 25 years spen life
5. Customized motion sensor, sensing distance reach to 8M.
6. All in one design with patent, Die Cast Aluminum alloy ,Waterproof IP66.
7. Turn on at dusk and tun off at dawn automatically.
8. Time control + light sensor control+ motion sensor control
9. Motion and light sensor built in:solar street light goes on at dusk at 20% brightness(Brightness adjustable).
Can go from 20% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge.
(1)Bright: motion activates for lighting when motion is detected for security light and to save battery;
(2)DIM: 20% lighting for saving power when no motion(Brightness adjustable);
(3)Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according to client's demands).
10. Remote control the lighting mode, OEM, ODM is available.
11. AC/DC Hybrid Solar Power System Available ( need customization)
Product Specifications:
|
Part NO. Parameter |
LY-ST30020XX | LY-ST30030XX | LY-ST30040XX | LY-ST30050XX |
| Power | 20W | 30W | 40W | 50W |
| Luminous flux(lm) | 3200 | 4800 | 6400 | 8000 |
| Beam angle | 150*70° | 150*70° | 150*70° | 150*70° |
| Pole Diameter | 60mm | 60mm | 60mm | 60mm |
| Chip Brand | Luxeon 5050 | Luxeon 5050 | Luxeon 5050 | Luxeon 5050 |
| Solar Panel | 30W/18V Monocrystalline Silicon | 30W/18V Monocrystalline Silicon | 50W/18V Monocrystalline Silicon | 50W/18V Monocrystalline Silicon |
| Battery | 18650 Lithium battery 12V 20Ah | 18650 Lithium battery 12V 30Ah | 18650 Lithium battery 12V 40Ah | 18650Lithium battery 12V 50Ah |
| CRI | >70 | |||
| Color Temperature | Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K | |||
| Operating Time | Full Power>12 hours, Intelligent mode 4-5 days | |||
| Control mode | Light Control + Motion Sensor | |||
| Material | Die Cast Aluminum | |||
| IP Rating | IP65/ IP66 | |||
| Installtion Height | 4-8m or higher | |||

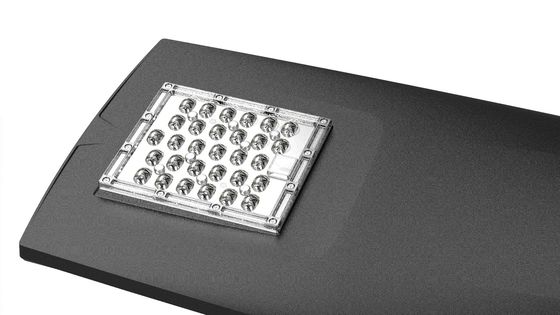

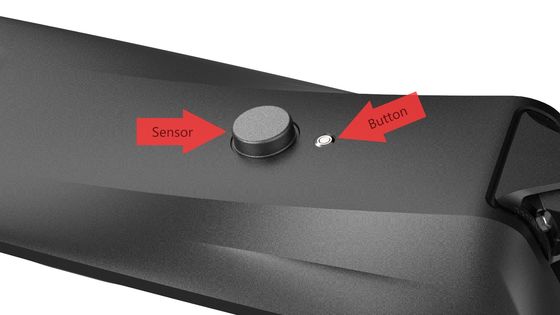

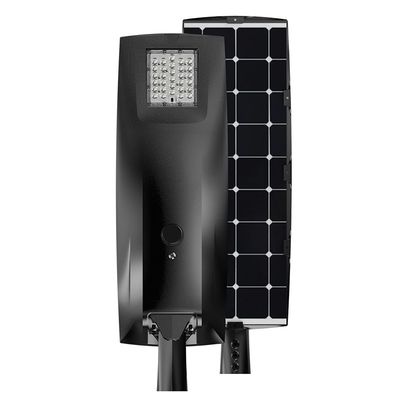

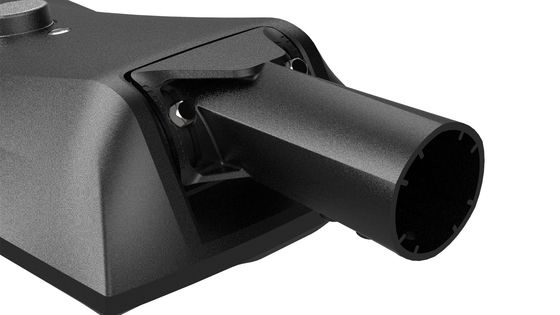

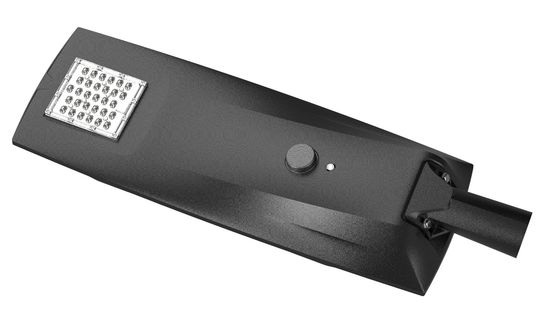

Product Picture
FAQ
* What LED chip is used? Luxeon 5050 chips
* What type of solar cell is used? 18650 Lithium Battery
* What is the warranty period? In general can work 5 years and We support 3 years warranty
