Product Details:
Payment & Shipping Terms:
|

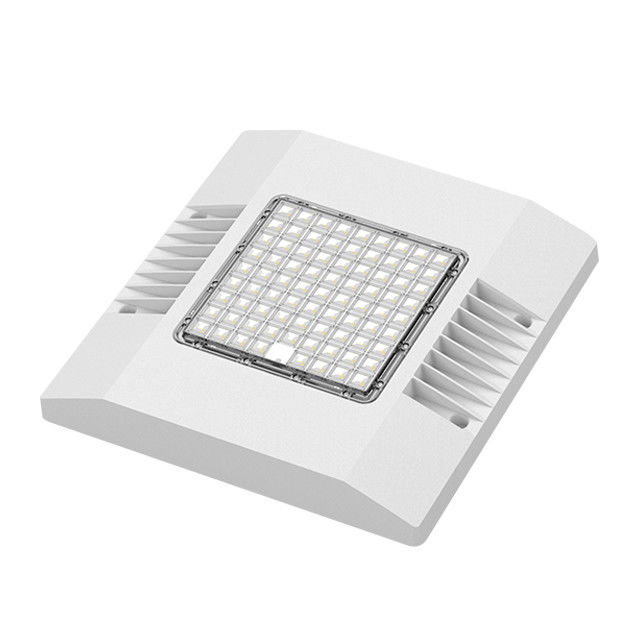

| Product Name: | LED Gas Station Light | Input Voltage: | AC100V～240V 50/60HZ |
|---|---|---|---|
| Luminous Flux(lm): | 16500LM | Chip Brand: | LUXEON 5050 |
| CRI: | ＞70 | Lifespan(hrs): | ＞50000 |
| IP Rating: | IP66 | Net Weigh(kg): | 5.8 |
| Size(mm): | 383x383x61 | Package Size(mm): | 415*415*120 |
| Highlight: | 160lm/W LED Gas Station Light,16500LM LED Gas Station Light,100W Gas Canopy Led Lights |
||
• Using LUXEON 5050 led chip to ensure high lumen and long life. Whole lamp output light effiency >160LM/W.
• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Seals using silicone rubber, oil proof, aciduric, alkali fast, fire resistant.The unit construction of lamp adopt waterproof and dustproof design, It can meet the indoor and outdoor needs .
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• There are 95°beam angle for your optional, optimized light distribution design solution.
• High luminous efficiency, High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
• The whole lamp with the powder coating is brighter, without fading and corrosion.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
• The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
| Par NO | LY-YL20100PW | LY-YL20100PW | LY-YL20100PW |
| Input voltage | AC100V～240V 50/60HZ | ||
| System consumption(W) | 100 | 100 | 100 |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| LED Driver | MEAN WELL HLG-150H / HLG-150 / ELG-150 | ||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||

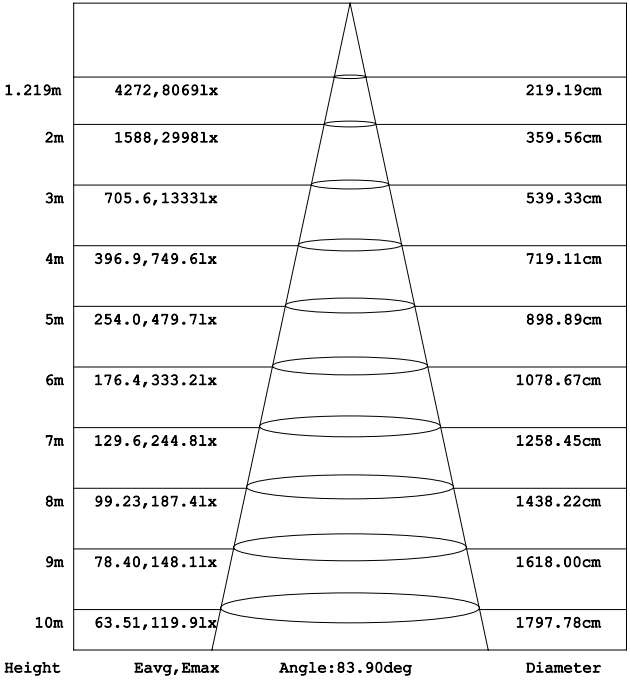

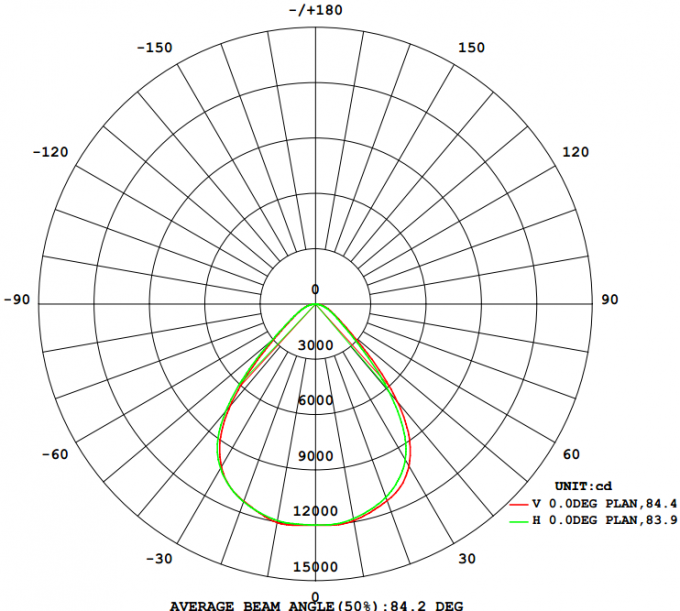

| Beam Angle | 85 DEG | 85 DEG | 85 DEG |
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Color Temperature | WW:2700-3200K / NW:4000-4500K / PW:5000-6500K | ||
| Material | Die-casting Aluminum+PC Lens | ||
| Size(mm) | 383x383x61 | 383x383x61 | 383x383x61 |
| Net Weigh(kg) | 5.8 | 5.8 | 5.8 |
| Sample Time | Immediately | ||

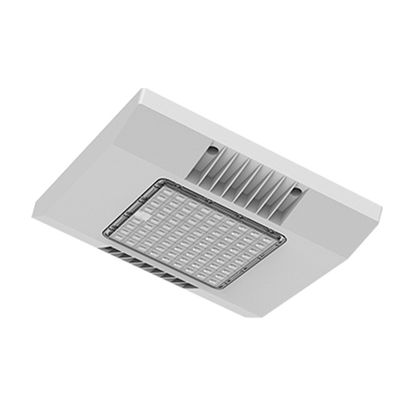

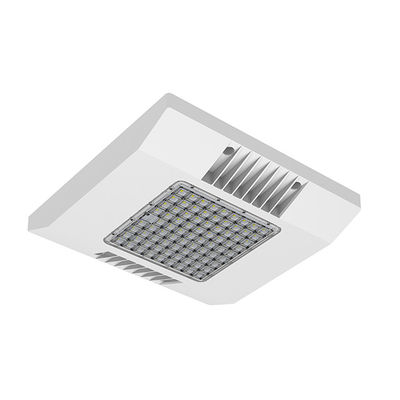

Product Images
Project Cast Images
Packing Details
FAQ
Q1. What is your MOQ?
MOQ: 1 Pcs. Which is No MOQ.
Q2. Can I get a lower price for large quantity order?
Yes, please check with our sales staff for the details.
Q3. What is the payment terms of your formal order?
We accept payment via TT, Paypal, Western Union, and we offer EXW terms.
Q4.Can you guarantee the product quality?
We offer 3-10 years warranty to our products. We ensure and guarantee the production quality of all products, either sample order or formal order, with LEYOND's quality control process, we achieved less than 0.2% general failure rate, this was based on our sales records in the past 10 years.
Q5. Can you provide OEM and ODM service?
Yes, we can provide OEM and ODM product, with customized label design on the product and carton box. Or customized carton box, and laser print logo on the lamp fixture.
Q6. Can you provide the certificate and test reports?
Yes, please contact our sales staff, we can provide all the certificates, test reports, photometric reports and IES files of each of our luminaire.
Q7.How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q8.What is the lead time of your product? Our standard lead time for sample is 3-5 days, and normal order lead time is 7-10 days. For the large order lead time, please also check with our sales team.
