Product Details:
Payment & Shipping Terms:
|
| Power: | 250W | Chip Brand: | 5050 |
|---|---|---|---|
| Beam Angle: | 25°,36°,90°, 150*65°, 153*80° | Driver Brand: | Meanwell |
| Housing Color: | Black / White | IP Rated: | IP66 |
| PF: | >0.98 | Input Voltage: | 110-240V AC |
| Luminous: | 40,000lm | ||
| Highlight: | led outside flood lights,rgb led floodlight |
||
160lm/W LED Modular Light 250W with 5050 chips Meanwell Driver 5 Years Warranty
1.Specifications of Led Flood Lights
| Basic Information |
| Part No. | LY-ST24240-XX |
| Power | 250w |
| Voltage | 100-240V AC 50/60HZ |
| Chips | 5050 |
| Driver | Meanwell HLG-240 |
| Material | Alluminum+ PC |
| Color | White/Black |
| IP Rate | IP66 |
| CRI | 75 |
| PF | >0.98 |
| Beam Angle | 25/36/60/90° |
| CCT(K) | 2700-3300K(WW).4000-4500K(PW),6000-6500K(CW) |
| Certification | EMC,LVD,RoHS |
| Lifespan | >50,000hrs |
| Warranty | 5 Years |
| Working Environment |
| Working Temperature | -30-50 ℃ |
| Relative Humidity | 20-90% |
| Store Temperature | -30-80 ℃ |
| Electronic |
| Blue | Neutral |
| Browm | Line |
| Yeallow-Green | Ground |
| Application |
| Application Area |
1. Warehouse lighting, Industrial lighting 2. Parking Lot Lighting, Garage Lighting 3. Airport, Train Station Lighting 4. Tunnel Lighting |
| Installation Height | Recommend 5-12M height |
2. Features of Outdoor Led Flood
• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• There are 24°, 36°,60°, 90° beam angle options for the Lens.
• Scientifically-designed heat dissipater with much better cooling effect.
• High luminous efficiency, Whole lamp output light effiency >160LM/W.
• High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
• For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

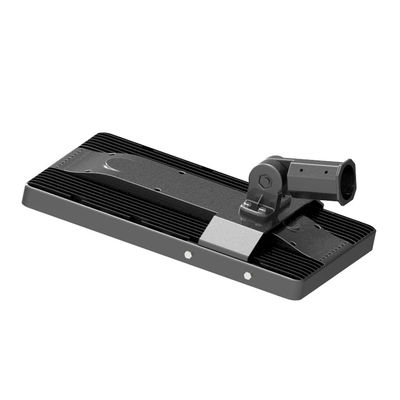

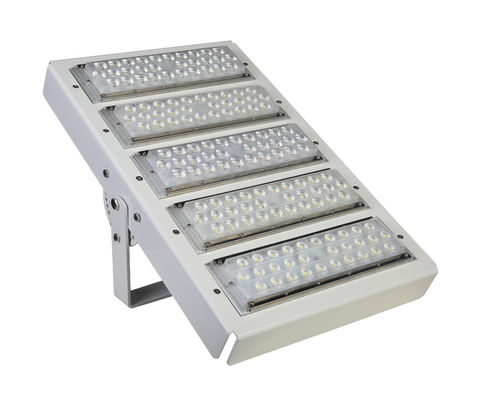

3.Pictures of Waterproof Led Flood Lights
4. Quality Control of Led Flood Lights Outdoor High Power
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability and we will also test its temperature after 24 hours’ lighting. Then after it is cool we again test 100% of the lamps to see if it still work well . Each lamp should pass all these QC procedures before shipping to customer.
5. IES test data(50w module 25°) of Super Bright Led Flood Light
6. Application of Ip65 Led Flood Light
• It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.
• New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.

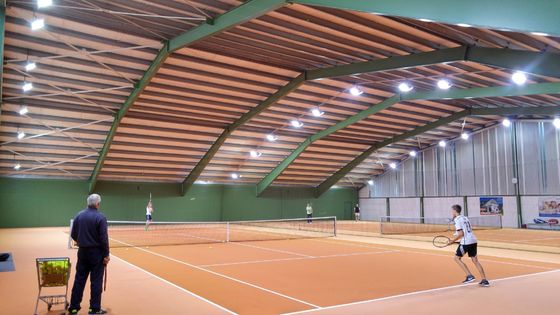

• Below is the feedback picture from our client.
FAQ:
1. What`s the chip and driver does the light use?
Answer: Bridgelux /Luxeon chip and Meanwell Driver.
----- We are the Strategic Partners with Taiwan Epsitar and US Bridgelux company. And also have good relationship with MW company. We keep all material are original and qualified before our production.
2. How many years warranty are you provide?
Answer: We will offer 5 Years warranty,
3. What is the lighting range does the lamp can made?
Answer: The lighting range can reached 50-100M,
4. How height does the lamp should be installated?
Answer: the suitable installtion height is 8-10m.
5. What is your website? Are you manufacturer?
Answer: Yes, we are professional manufacturer which special on High Power led light developing and producing from 2005. Welcome to visit our werbsite on www.leyond.com.cn. And if you have time to China. Please feel free to contact us. Your coming will be highly welcomed for us.
