Product Details:
Payment & Shipping Terms:
|
| Item: | 1000w High Power LED Stadium Light | Power: | 1000w |
|---|---|---|---|
| LED Chip: | CREE XTE | Lighting Efficiency: | 90-100lm/w |
| Driver: | Meanwell HLG-240 | PF: | >0.95 |
| CCT: | 2800-6500K | Liftspan: | >50,000hrs |
| Highlight: | high power led floodlight,led outside flood lights |
||

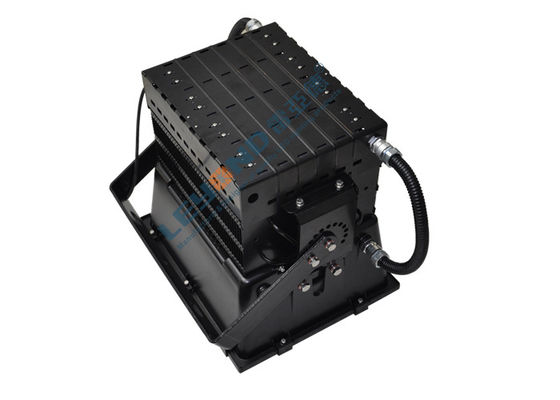

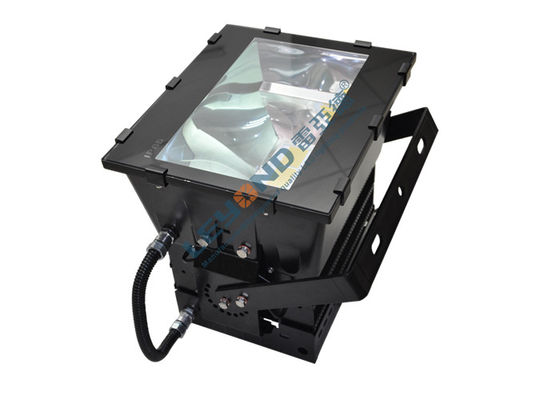

5 years warranty led stadium lighting Cree XTE 400W 500Watt led flood light 100000 lumens projector
Application:
1. Building 2. Stadium, Tower, Tower Crane, Dock, Square, Factory etc
Parameters:
| Specification | |
| Power: | 1000w |
| Material: | High pure fins aluminum and tempered glass |
| Type Of Chip: | 1w-5w High Power LED Chip |
| Brand Of Chip: | CREE XTE |
| Luminous: | 95850 LM |
| Color Temperature: | 2700 ~ 6500K |
| CRI: | Ra ≥ 80 |
| Beam Angle: | x25°*y90°; x60°*y90°; x90°* y90° |
| Total Harmonic Distortion(THD): | <15% |
| PF: | >0.95 |
| Working Life: | ≥ 50000 hrs |
| Warranty: | 5years |
| Dimensions | |
| Finishing Color: | Black |
| Wire connection: | L(Brown);N(Blue);G(Green/Yellow) |
| SHAPE: | Rectangle |
| Weight: | 31.5 Kg |
| Size: | 490x430x395mm |
| Adjustment bracket: | 216° |
| Package Size: |
box size: 640*580*640mm 1pc/carton; CBM:0.23m³ |
| Work Environment | |
| Input Voltage: | AC90-305V/480V,50-60Hz |
| Operating Temperature: | -40~ + 60°C |
| Application | |
| Application: |
Gymnasium, Sports Stadium Lighting; Building, Billboard Lighting; Gas Station, Garage Lighting; Park, Garden Lighting; Workshop, Factory Lighting; Warehouse, Storage Lighting; Yard, Square Lighting; Road,Highway Lighting;Station,Dock Lighting etc. |
| Recommend mounting height: |
15m-100m |
Meanwell Driver
| Driver brand: | Meanwell HLG-240 Series X 4pcs |
| Ac input voltage range | 90-305VAC/350VAC/480VAC,127-417VDC/431VDC |
| Power factor | >0.95 |
| Driver Safety standards | Passted UL 8750/1012/60950,TUV EN61347/60950-1 |
| Protection function | Short circuit, overload, over voltage, over temperature |
| Emc standard | EN55015,EN55022 Class-B,EN61000-3-2 Class-C |
| Drive IP | IP65 |
| Housing Material | Aluminum |
Advantages:
● Full waterproof design, ip65
● High transmittance empered glass,transimittan 93%
● Multible choices for reflctors: 90°*50°,90°*10°, meet the requirement of professional
light distribution.
● By riveting the heatsink to the fins,make the incomparable heatsink housing,The heat
from the LEDS is transformed to the fins with massive dissipating area by the 12X8mm
heatpipes,reducing the temperature of the LEDS rapidly and extending the life span.
● Over Current,Over Voltage,Over Heat,Thunder Protection
● Choice of correlated color temperatures
● Long lifespan for LED 50,000 hrs
● Complying with CE,ROHS, No strobing during working, Fast response (no delay) , No
mercury vapour ,No radiation,No UV,No damage with frequency switching
● 5 years warranty. Free replacement if any defect.
Terms&Conditions
1) T/T(30% T/T in advance, the balance paid before shipment.), PayPal, Western Union.
2) Minimum Order:.1pcs.
3) Samples can be available within 5 working days.
4) Lead time:7-10 working days for 100 to 500pcs, about 15 working days for 500 to 2000pcs.
5) Shipping freight is quoted under your requests.
6) Price term: EXW shenzhen
7) Discounts are offered based on order quantities.
8) Packaging: Neutral package, otherwise, can be customized according to customer requirements of Logo, Brand and etc.
9) OEM design and R & D production is available.
