Product Details:
Payment & Shipping Terms:
|
| LED Type: | CREE COB | LED Driver: | Meanwell Driver |
|---|---|---|---|
| Warranty: | 5 Years Without Worries | CRI: | Ra80 |
| Input Voltage: | AC100-240V, PF>0.95 | Lumens Efficiency: | 100LM/W |
| Beam Angle: | 38/60/90Degree | Powers: | 100w/120w/150w/180w |
| Highlight: | led high bay lamp,high bay led lighting |
||

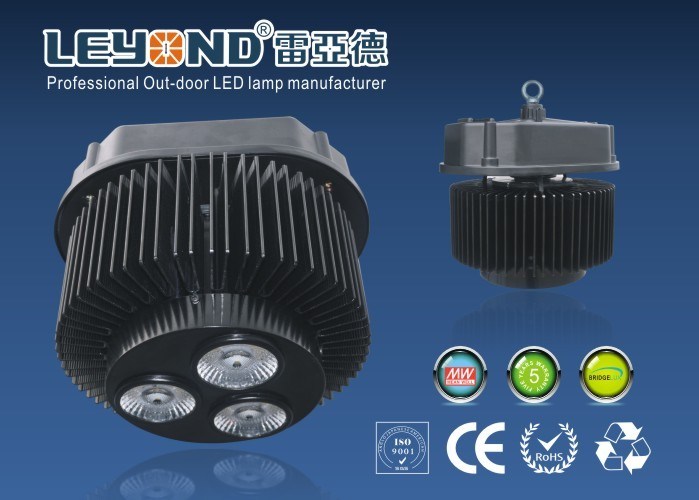

Small Anti Glare Led Highbay Light Meanwell Driver AC100-240v
CREE COB LED High Bay Light Specification:
| Par NO Parameter |
LY-HB40100XX | LY-HB40120XX | LY-HB40150XX | LY-HB40180XX |
| Inptut voltage | AC85V～265V 50/60HZ | |||
| Sysem consumption(W) | 105 | 125 | 155 | 185 |
| Luminous flux(lm) | 8000-9000 | 11500-12000 | 13500-14000 | 16000-16500 |
| LED quantity(pcs) | CREE2520 (COB) | CREE2530 (COB) | CREE2540 (COB) | CREE3050 (COB) |
| Beam Angle | 38°/60°/90° | 38°/60°/90° | 38°/60°/90° | 38°/60°/90° |
| CRI | ＞80 | |||
| Color Temperature(CREE) | 2700k,3000k,3500k,4000k,5000k | |||
| Driver | External power supply | |||
| Luminous efficiency(lm/w) | ＞90 | |||
| Lifespan(hrs) | ＞50000 | |||
| IP Rating | IP41 | |||
| Dimmable | YES＆NO | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | Φ302x312 | Φ302x312 | Φ302x332 | Φ302x332 |
| Net Weigh(kg) | 5.45 | 5.45 | 6.52 | 6.52 |
| Package Size(mm) | 322x322x362 | 322x322x362 | 322x322x362 | 322x322x362 |
| Package Quantity(Pcs) | 2 | 2 | 2 | 2 |
| Packing(mm) | 665x340x380 | 665x340x380 | 665x340x380 | 665x340x380 |
| Gross Weigh(kg) | 14 | 14 | 16 | 16 |
Features:
• Cree COB LED Chip inside,High light output>90Lm/W,High CRI>80;
• Patent DIMLTM Lens,high efficiency＞92%,Anti-glare Diamond quality;
• Absolutely unique mold, make your lighting special and fantastic;
• World Top class LED driver Inside,PF＞0.9
• Advanced thermal management technology.
• Over Current,Over Voltage,Over Heat,Thunder Protection
• 5 Years warranty , leave no worries about quality, enjoy the qualified green life.
• Operational condition: Temperature -40℃～60℃
• Humidity 10%～90%RH
Attentions:
• All data is under 25℃,unless otherwise specified.
• For example 180W LED High Bay.
Quality Warranty
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
Warning:
• Do Not Use Other Devices for LED high bay light Installation Such as Stabilizer, Regulator …etc
• Do Not Open the Light Engine
• Do Not Soak the high bay light into Water
• Do Not Light up the System Without Grounding
• Do Not Use Dimmer
Apllications:
Factory, Gym, warehouse, subway, place of business etc.
