Product Details:
Payment & Shipping Terms:
|
| LED Type: | CREE COB | LED Driver: | Leyond Or Mean Well |
|---|---|---|---|
| Warranty: | 3 Years | Beam: | 60/90degree |
| Dimmable: | YES / NO | CCT: | 2700k 3000k 4000k 5000k |
| Housing Color: | White Or Black | Diameter: | D120mm, Cut Hole 100mm |
| Highlight: | indoor led downlight,led down lamp |
||
100LM/W 20W 25W 30W Anti-glare CREE COB Led Down Light For Indoor Building Lighting
Specification:
| Par NO/Parameter | LY-DL2020 | LY-DL2025 | LY-DL2030 |
| Inptut voltage | AC85V～265V 50/60HZ | ||
| Sysem consumption(W) | 20 | 25 | 30 |
| Luminous flux(lm) | 1800-2000 | 2200-2400 | 2500-2700 |
| LED quantity(pcs) | CREE2520 (COB) | CREE2520 (COB) | CREE2520 (COB) |
| Beam Angle | 60°/90° | 60°/90° | 60°/90° |
| CRI | ＞80 | ||
| Color Temperature(CREE) | 2700k,3000k,4000k,5000k | ||
| Meterial | Aluminum+PMMA | ||
| Driver | External power supply | ||
| Luminous efficiency(lm/w) | ＞90 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP30 | ||
| Size of holes(mm) | φ95-105 | φ95-105 | φ95-105 |
| Downlight Size(mm) | φ120x74 | φ120x82 | φ120x94 |
|
Net Weigh(kg) |
0.65 | 0.69 | 0.75 |
|
Package Size (White Box)(mm) |
135×135×130 | 135×135×130 | 135×135×130 |
| Package Quantity(Pcs) | 20 | 20 | 20 |
| Packing(MM) | 69x28x27 | 69x28x27 | 69x28x27 |
| Gross Weigh(kg) | 16 | 17 | 18 |
Features:
• Cree COB LED Chip inside,High light output>100Lm/W,High CRI>80;
• Patent DIWL® Lens,Anti-glare Diamond quality;
• Absolutely unique mold, make your lighting special and fantastic;
• World Top class LED driver-Meanwell Types Inside;
• 3 Years warranty , leave no worries about quality, enjoy the qualified green life.
• Operational condition: Temperature -40℃～60℃
Product Size:

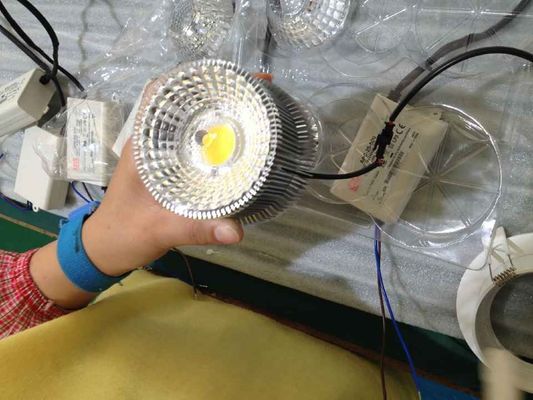

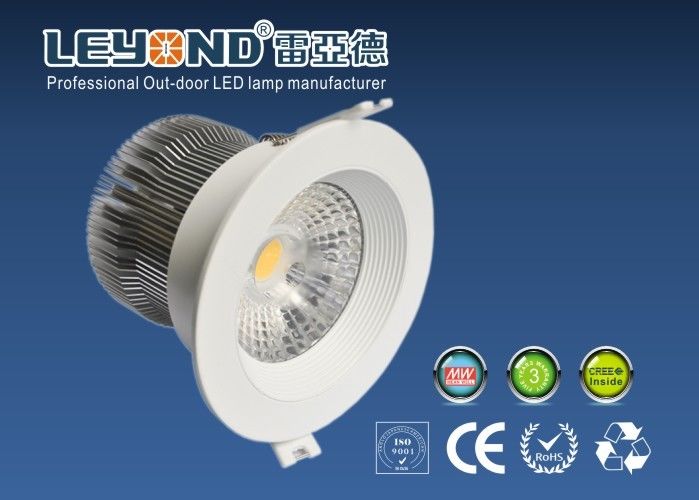

Pictures:
Applications:
- Replacement of traditional halogen bulb.
- lllumination and decoration at home and publix areas.
- Suitable for hotel,meeting room,show room,shop,telephone booth, etc
Quality Warranty:
• Quality guaranteeis based on storing, installing ,operating and maintaining correctly inthe normal operation condition.
• It is not included in our maintainingrange when installing inappropriately,breaking the operating rules, and leading to the productsdamaging.
• Ourcompany will maintain the right to either repair, parts replacing,or products exchange during the quality warranty period
