Product Details:
Payment & Shipping Terms:
|
| LED Type: | Bridgelux | LED Driver: | Mean Well |
|---|---|---|---|
| Warranty: | 5 Years | Beam: | 10/24/38/60/90degree |
| Dimmable: | YES / NO | CCT: | 2700k 3000k 4000k 5000k 6000k |
| Housing Color: | White | Power Factor: | >0.95 |
| Powers: | 24W/30W/36W | Materials: | Aluminum Housing, PC Lens, LED |
| Highlight: | led outdoor flood lights,led outdoor flood lighting |
||

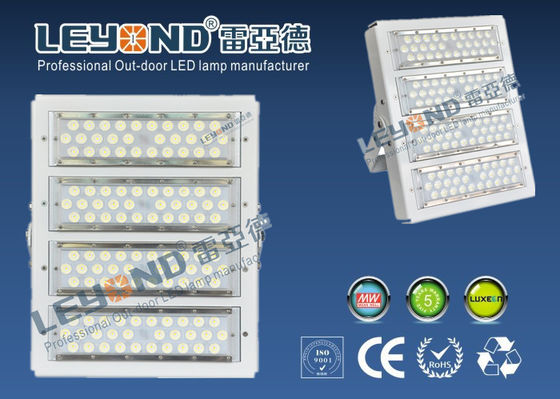

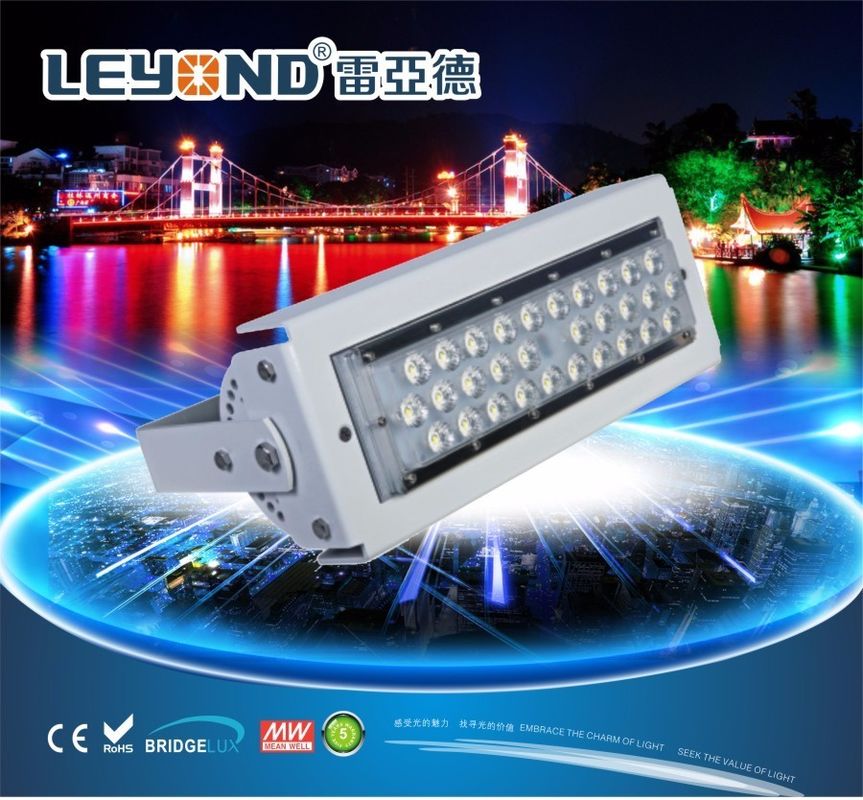

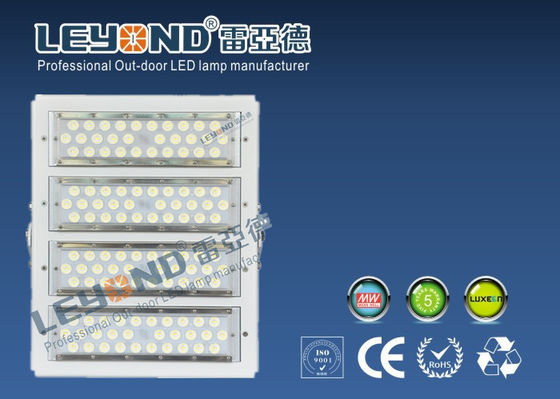

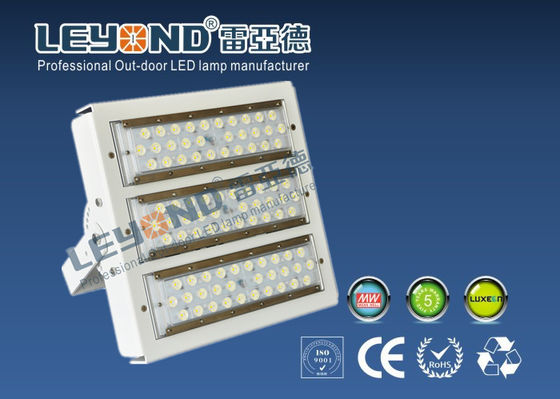

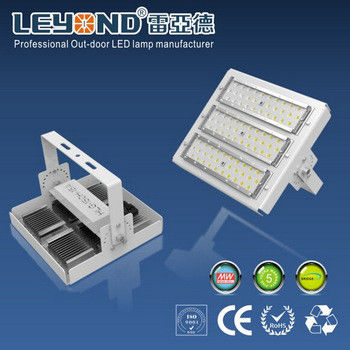

IP66 Cool White Led Modular Flood Light 50w / 100w / 150w , Exterior Led Flood Lights
Specification:
| Par NO/Parameter | LY-ST23050PW |
| Inptut voltage | AC85V~265V 50/60HZ |
| Sysem consumption(W) | 50W |
| Luminous flux(lm) | 5500-6000 |
| LED quantity(pcs) | Bridgelux |
| Beam Angle | 10°/24°/38°/60°/90° |
| CRI | >82 |
| Color Temperature(CREE) | 2700k,3000k,3500k,4000k,5000k,6000k |
| Meterial | Aluminum+PMMA |
| Driver | Meanwell driver |
| Luminous efficiency(lm/w) | >120 |
| Lifespan(hrs) | >50000hours |
| IP Rating | IP66 |
| Size(mm) | 320*128*176mm |
|
Net Weigh(kg) |
3.9 |
| Package Quantity(Pcs) | 1 |
| Packing(MM) | 385X259X155mm |
| Gross Weigh(kg) | 4.5 |
Features:
1.Adoption LEYOND exclusive Lens with light transmittance up to 98%.
2.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the
brightness and illumination uniformity.
3 There are 24°, 36°,60°, 90° beam angle options for the Lens.
4 Scientifically-designed heat dissipater with much better cooling effect.
5.High luminous efficiency, Whole lamp output light effiency >130LM/W.
6.High quality power supply, input voltage 100-240V. The power efficiency is more than 90%,
power factor greater than 0.98, UL compulsory certification.
7. For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation
±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage
fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current,
Over Voltage, Over Heat, Thunder Protection.
8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No
filament and glass frames, avoid break of the traditional lamp,without harm to the human
body.
9.The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions,
eliminated the low color temperature of the sodium lamp which cause the depressed mood,
observers will feel more comfortable.
Pictures:
Applications:
- Replacement of traditional halogen bulb.
- lllumination and decoration at home and publix areas.
- Suitable for hotel,meeting room,show room,shop,telephone booth, etc
Package:
1. Carton Size: 385mm×259mm×155mm
2. Net weight:3.9KG Gross weight:4.5KG
Quality Warranty:
• Quality guaranteeis based on storing, installing ,operating and maintaining correctly inthe normal operation condition.
• It is not included in our maintainingrange when installing inappropriately,breaking the operating rules, and leading to the productsdamaging.
• Ourcompany will maintain the right to either repair, parts replacing,or products exchange during the quality warranty period
