Product Details:
Payment & Shipping Terms:
|
| Item Name: | LED Tunnel Light | Power: | 100W/120W/140W |
|---|---|---|---|
| CCT: | 2800K-6500K | LED Chip: | Bridgelux 45mil Chip |
| LED Driver: | Meanwell Driver | Casing Color: | Black |
| CRI: | >70 | Warranty: | 5 Years |
| Highlight: | tunnel led lighting,led tunnel lighting |
||

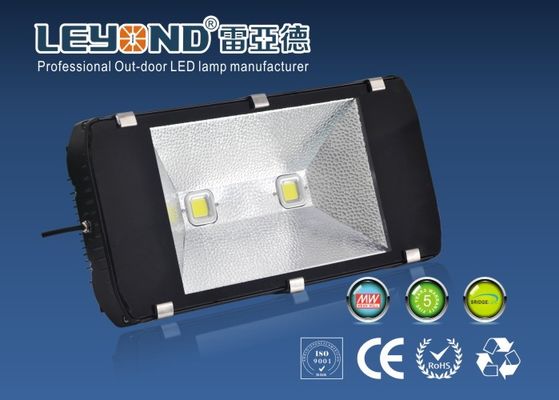

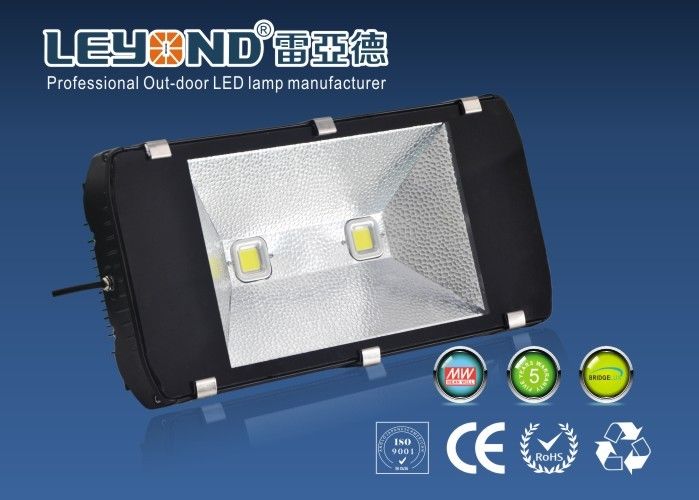

100W/120W/140W Waterproof IP65 LED Tunnel Lights Outdoor Lighting 2 Heads Bridgelux COB LED
Technical Data:
| Input Voltage | 100-240V AC 50/60Hz |
| Power factor | ≥0.95 |
| Power Efficiency | ≥85% |
| LED Power | 100W:2X50W 120W:2X60W 140W:2X70W |
| LED Luminous efficiency | ≥90lm/W |
| LED luminous flux | 8500-9500lm |
| Beam Angle | 100º |
| CRI | Ra>70 |
| Color Temperature | Warm white WW 2800-3500K Neutral white NW 4000-5000K Pure white PW 5500-7000K R/G/B/Other optional |
| Operatinal condition | Temperature:-30℃~50℃ Humidity:10%-90%RH |
Mechanical Specifications:
| Model | Product Dimension(mm) | Power(W) | LED luminous flux | Average Iilluminance | Facula Area | N.W |
| LY-FL20120PW | L600xW285xH215 | 117W | 8500-9500lm | 6m=42lux 8M=25lux 10M=19lux | 6M=10x10M 8M=14x14M 10M=17x17M | 12KG |
| LY-FL20140PW | L600xW285xH215 | 138W | 10200-11400lm | 6m=46lux 8M=28lux 10M=21lux | 6M=10x10M 8M=14x14M 10M=17x17M | 12KG |
| LY-FL20160PW | L600xW285xH215 | 160W | 11900-13300lm | 6m=55lux 8M=32lux 10M=25lux | 6M=10x10M 8M=14x14M 10M=17x17M | 12KG |
Features:
• Multi-Chip on Lead Frame, Single Module LED Package Design
• System Design Integrating Power Supply, LED Light Engine, and Heat Sink
• Over Current, Over Voltage, Over Heat, Thunder Protection
• Choice of Correlated Color Temperatures(Specification Re-Defined Accordingly)
• Long lifespan for LED 50,000 hrs
• 100% Recycle, No Pollution, and UV, IR
Operation and Storage Condition:
• Operation Ambient Temperature -40 to +60°C, Relative Humidity 20~90%
• Input Voltage 85-265V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 8~10mheight
Certificate:
• The Whole Spotlight Certificated with ROHS
• The Whole Spotlight Certificated with CE
Application:
• Projector / Spotlight/Wall Lighting
• Pathway Lighting / Park Lighting
• Garden Lighting/Backyard Lighting
