Product Details:
Payment & Shipping Terms:
|
| Aviliable Power: | 200W - 500W | Modules Number: | 4 |
|---|---|---|---|
| LED Chip: | Bridgelux | LED Driver: | Meanwell HLG |
| Bean Angle: | 24° , 36° , 60° , 90° | IP: | IP65 |
| Warranty: | 5 Years Warranty | Input Voltage: | AC90 ~ 305V 50 / 60HZ |
| Highlight: | led outdoor flood lights,commercial outdoor led flood light fixtures |
||
Aluminum alloy lamp body High Brightness Football Ground 200w Led Outdoor Flood Light Ip65 6500k
Electrical Specifications
Model |
modules number |
Power |
Input Voltage |
Input Current |
Power factor |
Power efficiency |
|
LY-ST23200PW |
4 |
200W |
AC90~305V
|
0.93A/220VAC |
>0.99/115VAC
|
>90% |
|
Photometric Specifications |
|||||||
Model |
modules number |
Power |
Luminous flux |
Luminous efficiency |
CRI |
CCT |
BeamAngle |
LY-ST23200PW |
4 |
200W |
>24000lm |
120lm/W |
>50 |
3000-3500K
|
24°
|
Mechanical Specifications |
|||||||
Model |
modules number |
Power |
Carton Size |
gross weight |
Net Weight |
IP Rating |
Meterial |
LY-ST23200PW |
4 |
200W |
385X470X155MM |
10.3kg |
9.2kg |
IP66 |
Aluminum +PC |
Outlook:
Distribution Curve:
Photometry (AAI Figure)

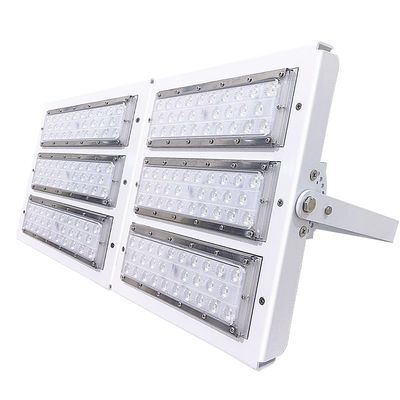

Pictures:
Application:
It can be used for Outdoor lighting.Football ground lighting , Tennis playground lighting and Warehouse lighting , plaza lighting , tunnel lighting and so on.
New Installation or Replace the traditional High Pressure Sodium Lamp , High Pressure Mercury Lamp , and Metal Halide Street Lamps. Etc.
1. Adoption LEYOND exclusive Lens with light transmittance up to 98%
2. Perfect Light Distribution Solution , Adoption of integrated shell optic lens , enhance the brightness and illumination uniformity
3. There are 24° , 36° ,60° , 90° beam angle options for the Lens
4. Scientifically-designed heat dissipater with much better cooling effect
5. High luminous efficiency , Whole lamp output light effiency >130LM/W
6. High quality power supply, input voltage 100-240V . The power efficiency is more than 90% , power factor greater than 0.98 , UL compulsory certification .
7. For the traditional light source such as the High Pressure Sodium , if the voltage fluctuation ±7% , the brightness and lifetime will be reduced very fast , but for LEYOND LED , even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all ; Over Current , Over Voltage , Over Heat , Thunder Protection
8. Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body
9. The CCT of Warm white , Neutral white , Pure white to meet the needs of different occasions , eliminated the low color temperature of the sodium lamp which cause the depressed mood , observers will feel more comfortable.
Operation and Storage Condition
• Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -30 to +65°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 5~12m height
