Product Name:: | LED Stadium Light | Lamp Luminous Efficiency(lm/w):: | 160LM/W |
---|---|---|---|
Driver Brand: | Meanwell | CRI (Ra>):: | >70 |
Working Lifetime(Hour):: | 50000 | Certification:: | CE,ROHS |
LED Chip Brand: | Luxeon Or Bridgelux 5050 | Warranty:: | 5 Years |
Highlight: | led roadway lighting,led street lamp |

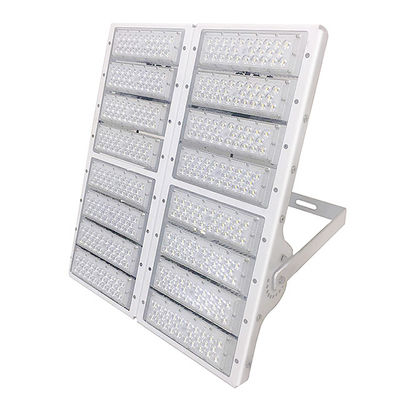

1000W LED Stadium Light Warehouse IP65 Waterproof Outdoor Flood light
Modular led flood light 160LM/W
Powers: 50W to 1000W
Luxeon 5050 chip LED
Meanwell driver
5 Years Warranty
IP66
Product Specification:
Model | modules number | Power | Input Voltage | Input Current | Power factor | Power efficiency | |
LY-ST231000PW | 16 | 1000W |
AC90~305V 50/60Hz |
4.78A/220VAC |
>0.99/115VAC >0.98/230VAC |
>90% |
Product Model | Luminous Flux | CCT | Light efficiency | Power | CRI |
Module Quantity |
Lens Degree |
LY-ST231000PW | 155000 LM | 5000-6500K | 155lm/W |
1000W |
>70
|
16 |
25° 60° 90° |
LY-ST231000NW | 152000 LM | 4000-4500K | 152lm/W | ||||
LY-ST231000WW | 132000 LM | 2700-3200K | 132lm/W |
Model | Carton Size | gross weight | Net Weight | IP Rating | Meterial |
LY-ST231000PW | 830×735×160mm | 24.5kg | 22.7kg | IP66 |
Aluminum +PC |
Product Features:
• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• There are 25°,60°, 90°, beam angle options for the Lens.
• Scientifically-designed heat dissipater with much better cooling effect.
• High luminous efficiency, Whole lamp output light effiency >160LM/W.
• High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
• For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
• The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
Product details with pictures:
Our Services:
1. Factory price, large monthly output
2. 5years warranty, high quality guarantee
3. professional Export service, easy to communicate and save your much time
4. Timely delivery, let you win biggest markets advantage
5. Satisfied After-sales service, to be your reliable supplier
6. any question will be get answer within 12 hours
7. R & D team, welcoem OEM and ODM order
Applications:
• It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.
• New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.
FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.
3. What can Leyond offer?
A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED Canopy Light, LED module, LED Street Light, ect.
4. How to place an order?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.
5. How long will be the lead time?
A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.
6. How long will the warranty period last?
A: We usually offer 2 years free warranty for Bridgelux products. More detailed warranty policy, please contact our sales representatives.
