Product Details:
Payment & Shipping Terms:
|
| Power: | 150W | LED Chip: | Lumileds/OSRAM 5050 LED |
|---|---|---|---|
| LED Driver: | Meanwell HLG-100 | IP Rating: | IP65 |
| CCT: | 2700-6500K | Warranty: | 5 Years |
| Beam Angle: | 150X65degree | Package: | 75cm×40cm×23cm (2 PCS ) |
| GW: | 9.6kg | Luminous Flux: | 16500lm |
| Dimmable: | YES&NO | CRI: | >80 |
| Pole Diameter: | 60mm | ||
| Highlight: | outdoor led street light,led roadway lighting |
||

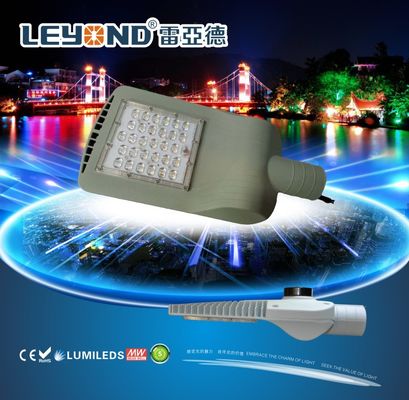

High Lumen Public Led Street Lamp , 60w Exterior Led Road Lighting Energy Saving
Major advantages of our street light:
1. LUXEON TX luminous source with LM-80 report.
2. High Reliable MEANWELL® HLG driver with 5 Years Warranty.
3. Over then 100,000 hours operation lifetime.
4. Have TypeI,TypeII ,TypeIII and TypeV four Photometric Types suitable to different road conditions.
5. IK08&IP66.
6. Have horizontal and vertical two installation choose,and also has 0-15° adjustable function for each installation direction.
7. 5 years Warranty
8. Patent product with 7 patent certificates.
Model |
LY-ST20150PW |
LY-ST20150WW |
LY-ST20150NW |
Inptut voltage |
AC100V～240V 50/60HZ |
||
Luminous flux |
25500lm |
24000lm |
24750lm |
Chip Brand |
Lumileds 5050 |
||
Driver Brand |
Meanwell HLG-150 |
||
Beam Angle |
150*65° |
||
Warranty |
5 years |
||
CRI |
>80 |
||
Color Temperature |
PW:5000-6500K |
WW:2700-3200K |
NW:4000-4500K |
Luminous efficiency |
170lm/w |
||
Lifespan |
50000hrs |
||
IP Rating |
IP65 |
||
Pole Diameter |
60mm |
||
Package Size |
720*370*200mm |
||
Net Weight |
8.8kg |
||
Specification:
Outlook:
Distribution Curve (100W)
Operation and Storage Condition
·Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
·Input Voltage 100~240V AC, 50/60Hz
·Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
·Mounting Height : Suitable for 6~12m height
Package
·Inner box Size: 720mm×370mm×200mm
·Outer box Size: 745mm×395mm×225mm (2 PCS LED Street Light)
Assembly and Installation
·Assembly-Electricity
1)AC100-240V
·Blue : Neutral
·Brown : Line
·Yellow-Green : Ground
