Product Details:
Payment & Shipping Terms:
|
| Power: | 50w (40w 80w 120w 150w 200w 300w 500w 800w Available) | LED Chip: | Bridgelux Flip Chip |
|---|---|---|---|
| Driver Brand: | China Driver | PF: | >0.95 |
| RGB: | RGB | Beam Angle: | 25 60 90 Degree |
| Material: | Aluminum+PC | Luminous Flux: | 1600 |
| Highlight: | led outside flood lights,rgb led floodlight |
||

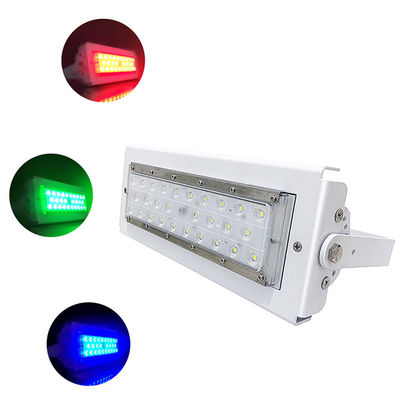

Super Slim 50w dmx rgb color change flood 110v outdoor led Flood light landscape flood lights
Electrical Specifications
| Model | Power | Input Voltage | LED Qty(pcs) | Beam Angle |
|
LY-ST23050RGB |
50W |
AC100~240V |
28 |
25°/60°/90° |
Photometric Specifications
| Emitting Color | λd / CCT | Typical Lumens | Forward Voltage | Forward Current |
| RED | 620-630 nm | 1400 lm | DC13-17V | 1000mA |
| GREEN | 520-530 nm | 2200 lm | DC21-25V | 1000mA |
| BLUE | 460-465 nm | 560 lm | DC21-25V | 1000mA |
| WHITE | R+G+B | 1500lm | DC13-25V | 1000mA |
Mechanical Specifications
| Model | Carton Size | gross weight | Net Weight | IP Rating | Meterial |
| LY-ST23050RGB | 385X259X155MM | 4.5kg | 3.9kg | IP66 | Aluminum +PC |
Product Details
Features.
Adoption LEYOND exclusive Lens with light transmittance up to 98%.
Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
There are 25°,60°, 90° beam angle options for the Lens.
Standard DMX512 input interface and a built-mode controller , can be realized in whole or segmented light change control, especially, it can achieve water and complicated effects.
Master or Slave function, if set master, it can stead of the external controller.
Reliable 350mA constant current driver designed to ensure high-power LED lights for a stable job.
Superior ability to adapt to the environment, protection grade IP66, can adapt to a variety of indoor and outdoor temperature and humidity environment. The lamp base is aluminum alloy, solid ,anti-aging, anti-variant, long service life.
more than 16777 thousand kinds of colors can be realized output, with good light efficiency, beautiful color and so on.
Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
Distribution Curve
Application
LED is cold light sources, a wide range of output color, RGB LED as a light source ,can be widely used in various building walls of light color decoration, and the stage, meeting rooms, display lights, ancient buildings, the Cultural Plaza and other places.
Payment: T/T in advance
Items: EXW Price
Delivery Time: 5-7 days for sample, 12-18 work days for bulk order.
Shipping way: DHL, FEDEX, UPS, TNT express, by sea or by air.
Quality Control:
Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.
It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.
Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.
Operation and Storage Condition
1) Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2) Input Voltage 100~240V AC, 50/60Hz
3) Storage Ambient Temperature -20 to +65°C, Relative Humidity 5~95%
4) Mounting Height : Suitable for 5~12m height
