| Power: | 240w (100w,150w,200w Available) | Input Voltage: | AC100-240V |
|---|---|---|---|
| LED Brand: | Lumileds 3030 Chips | Driver: | Meanwell HBG Series |
| IP Rate: | IP65 Protection | Beam Angle: | 60/90/120d |
| CRI: | >80 | Warranty: | 5 Years |
| Luminous: | 29,300lms | ||
| Highlight: | led high bay lamp,high bay led lighting |
||
Standardized design UFO High Bay Light 240w CRI>80 Lumileds Chips&Meanwell driver
UFO High Bay 240W Features:
1) UFO design, lighter and nicer. Best for industrial lighting.(such warehouse,stadiums etc.)
2) Brand Lumileds 3030 chip inside. High lumens output>120lm/w for whole lamp.
3) Top class Meanwell driver, high efficency. PF>0.95.
4) Rugged die-casting aluminium alloy body coated with black anti-corrision coating, excellent heat dissaption.
5) High brightness,luminaire 130lm/w, 100w/150w/200w/240w for application.
6) 60 /90 /120 degree beam angle for optional, light weight, easy assembly & installation.
Advantages
1) LED chips plus Meanwell HBG driver, 5 years warranty.
2) High brightness,luminaire 130lm/w, 100w/150w/200w/240w for application.
3) 60 /90 /120 degree beam angle for optional, light weight, easy assembly & installation.
Parameter
| Part No. | LY-HB38240-XX (XX for CCT) |
| Power | 240watts |
| Inptut voltage | AC100V～240V 50/60HZ |
| Lumens | 29300lm |
| LED Source | SMD3030 |
| LED QTY | 360pcs |
| LED Driver | / MEAN WELL Brand |
| Beam Angle | 60/90/120degree |
| CRI | ＞80 |
| Color Temperature | 2700-3000K,4000-4500K,5000-5700K |
| Meterial | Magnesium Aluminum + PC cover |
| Lifespan(hrs) | 50,000hrs |
| IP Rating | IP65 Protection |
| Product Size(mm) | Φ400X204 |
| NET Weight(KG) | 5.0KG |
| Warranty | 5 years |

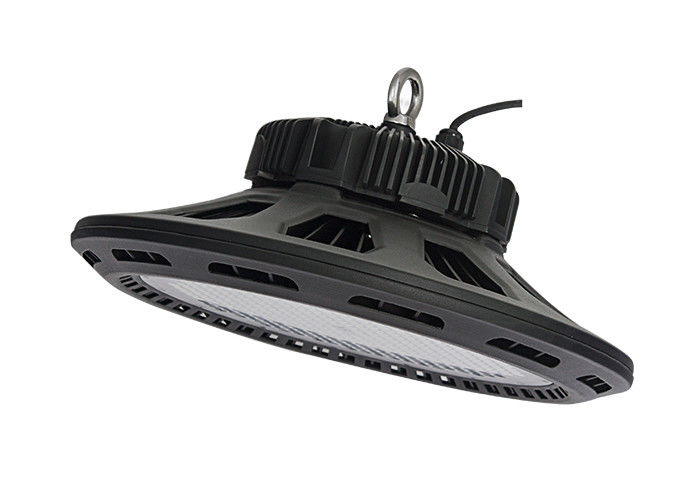

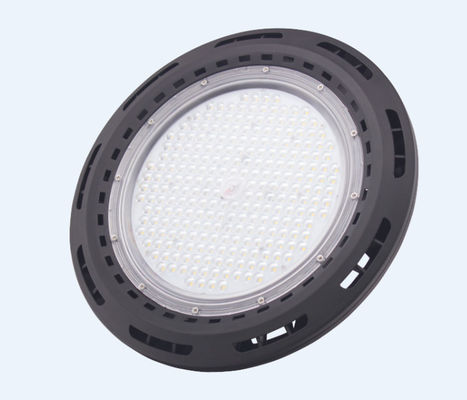

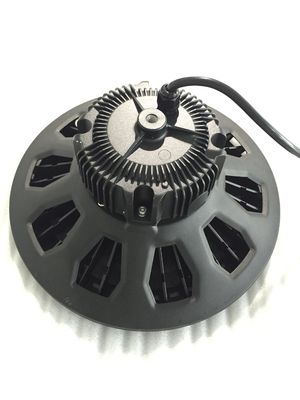

Pictures:
Aging Test:
100% of all lamps will be tested by auto testing line which including different voltage, and keep lighting for 24 hours to test its quality reliability and we will also test its temperature after 24 hours’ lighting. Each lamp should pass all these QC procedures before shipping to customer.
Instatllation Guide:
Application:
The lamp can be widely used in Warehouse,Industrial workshops,Logistics centers,Exhibition halls,Stadiums,Docks,Golf courses,Airport,Highway toll stations,supermarkets Light engineering.
FAQ:
1. What is your price?
---Based on your quantity and specification requirement, reasonable and affordable price.
2. How many years warratny?
---5 years warranty, 50000 hours lifespan.
3. What is the payment term?
---For sample order, we can accept T/T, Paypal, West Union, 100% in advance.
For bulk order, 30% deposit in advance by T/T, 70% balance before shipping.
4. What's your fast delivery time for sample 1-10pcs?
---Within 2 day once receive your payment.
5. Can I add my Logo on the product label?
---Yes.
6. I don’t know how many Led High Bay Light should I use, can you advise?
---Yes, we can help you do the lighting design using software Dialux, IES file is available if you have the design team.
7. How many years are you do led lights business?
---10 years experiences since 2007.
